Rigid Frame Structure Wire And Cable Stranding Machine Milliken Conductor

1. Application:

It is mainly used for stranding and compacting of copper , aluminum conductors of round and sector shapes , as well as pre-twisting compacting of Milliken conductors , which has reached modern advanced level in the world.

The machine uses Siemens PLC to control and manage the whole line , and adopts full digital DC speed regulator to control the starting and running of the DC motors . The electrical control system is of advanced technology , ensure easy and reliable operation.

2. Technical specification

Bobbin size : 400mm , 500mm , 630mm , 710mm , 800mm

Bobbin quantity of single cage : From 6 bobbin to 48 bobbin

Clamping : Pneumatic type clamping , Motor clamping , Manual Clamping

Tension control : Hysteresis tension control , Mechanical tension control

Mechanical tension control with feedback , Pneumatic tension control

Bobbin loading : Side bottom hydraulic loading , Side bottom electrical loading , Side loading

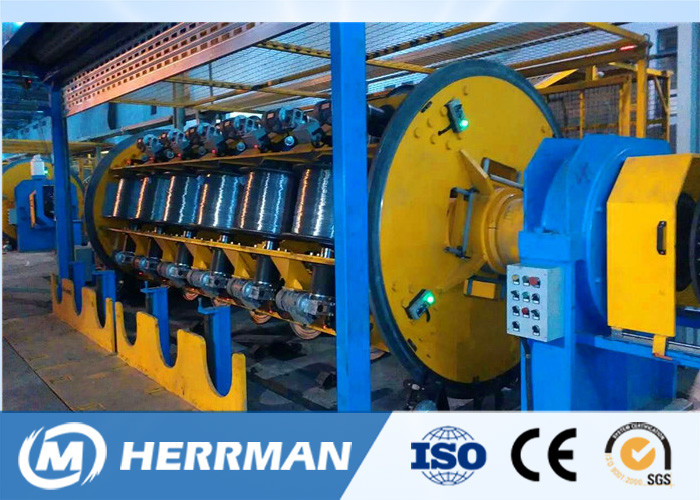

3. Picture for reference

Anhui Herrman Machinery Co Ltd was found in 2010. It is 100% Private Owned by Anhui Herrman Group which was established in 1994. Our Target Goal is to serve customer with EPC business on Cable Production Projects. We have perfect Team on Engineering Design, OEM Production and High Quality Contractor. We have very good experience on supplying all kinds of cable making machineries which are related

to Power cable, control cable, insulated wires & Optical Fiber cable with Turn Key projects as well.

We have good reputations in 36 countries such as USA, Turkey, Czech Republic, Korea & India, Egypt, etc. . We supply not only High Quality machinery, but also good maintenance service to supply spare parts and engineering service. To achieve good satisfaction, you are mostly welcome to visit our factory and interview good machines which are running in China & other countries.
