Drum Twister Type armoring machine Drum twister for HV cable

1.Description

Drum Twister Type armoring machine is used for laying-up of large section, long length power cables. The line is for laying-up of pre-spiral or non-pre-spiral cable cores and Milliken cable. The line is used for steel wires armoring of power cables, too.

2.Main Specification

3.Main Parts

1 Φ2000 rotating pay-off stand(with lifting platform)

2 Pay-off stand of filling yearns

3 Guiding rollers stand

4 Three row cables assembly die set

5 Taping head (non-metallic tapes)

6 4T Rotating belt caterpillar (having meter counter)

7 Φ3150 rotating take-up stand with traverse(with lifting platform)

8 Electric transmission and control system

9 Pneumatic hydraulic system

10 Safe fences

​11 2000 central pay-off

12 Steel wire pay-off syste,

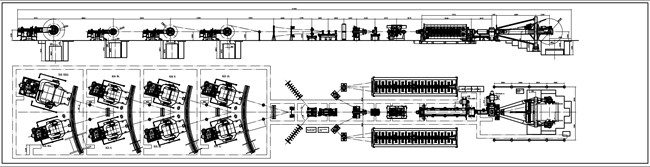

4.Drawing for reference
