    400~630mm Bobbin Size Armouring Machine High Carbon Steel Planetary Steel Wire Armouring Machine

    Ask Lasest Price
    Brand Name : Herrman
    Model Number : 630, 500, 400
    Certification : CQC, CE, ISO, SGS
    Price : By Negotiation
    Payment Terms : T/T, L/C, D/A, OA, D/P
    Supply Ability : 35 Sets Per Year
    Delivery Time : 120~150 days
    • Product Details
    • Company Profile

    400~630mm Bobbin Size Armouring Machine High Carbon Steel Planetary Steel Wire Armouring Machine

    400~630mm Bobbin Size Armouring Machine High Carbon Steel Planetary Steel Wire Armouring Machine


    1. Application


    This machine is mainly used for steel wire armouring.


    2. Main Technical Specification


    TypeJL-400JL-500JL-630
    Single conductor dia.Cu1.0~5.0mm1.0~5.0mm1.0~5.0mm
    Al1.6~5.0mm1.0~6.0mm1.8~6.0mm
    Insulated Wire2.0~6.0mm2.0~8.0mm4.2~10mm
    Max Out Dia.35mm45mm50mm
    Stranding Pitch6B43~754mm59.20~1010mm200~950mm
    12B43~754mm59.2~1010mm200~950mm
    18B556~980mm67.4~1149mm200~950mm
    Stranding Speed6B70~167r/min51~121r/min85r/min
    12B70~167r/min51~121r/min85r/min
    18B54~128r/min45~107r/min85r/min
    Line speed52.7m/min51.6m/min60m/min
    Pay off bobbinPN400/PND400PN500/PND500PN630/PND630
    Central pay offPN1000~PN2500PN1000~PN2500PN1600
    Take up bobbinPN1000~PN2500PN1000~PN2500PN1000~PN2500


    3. Main Components


    3.1 Ф1600 pintle type pay-off stand 1 set

    3.2 Ф630 manual pay-off stand 1 set

    3.3 # shape wire guiding stand 1 set

    3.4 6B, 12B, 18B, 24B stranding cage each 1 set

    3.5 Wire assembly die seat 4 sets

    3.6 Non-metal taping device 1 set

    3.7 Electric & mechanical meter counter 1 set

    3.8 Φ2000 dual capstan device 1 set

    3.9 Φ3150 portal type take-up with traversing stand 1 set

    3.10 Mechanism transmission system 1 set

    3.11Electric control system 1 set

    3.12 Safety fence 1 set

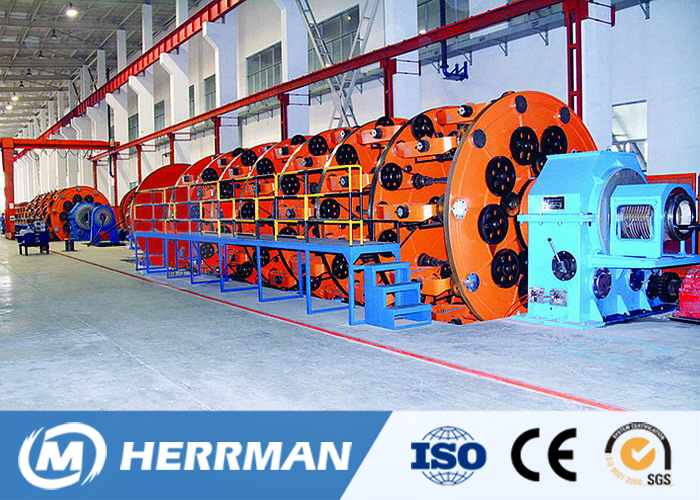

    4. Photo
