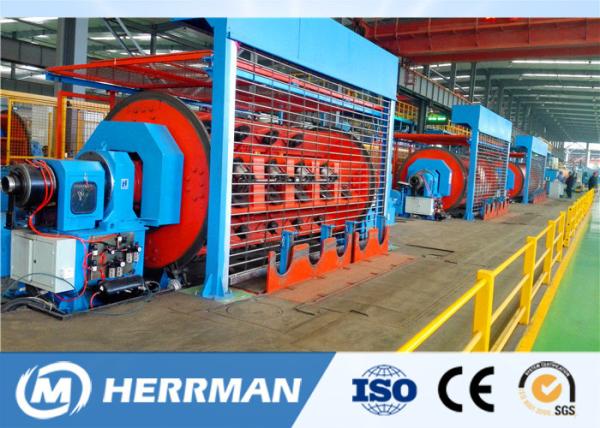

Rigid Frame Cable Stranding machine For Copper and Aluminum Conductor

Application:

The machine is mainly used for stranding copper, aluminum and aluminum alloy wires, make compacting or non-compacting round conductor. Non compacted or compacted circular. Circular conductors are compacted with dies. Compacted Sector (pre-spiralled sectors as option)

Technical Specification:

Bobbin Size: 400mm,500mm,630mm,710mm

Bobbin QTY of Singe cage: From 6 bobbin to 48 bobbin

Clamping: Pneumatic type clamping, Motor clamping, Manual Clamping

Tension control: Hysteresis tension control, Mechanical tension control, Mechanical tension control with feedback, Pneumatic tension control

Bobbin Loading: Side-bottom Hydraulic loading, Side-bottom Electrical loading, Side loading

Main Technical Data

Machine Drawing:

Anhui Herrman Machinery Co Ltd was found in 2010. It is 100% Private Owned by Anhui Herrman Group which was established in 1994. Our Target Goal is to serve customer with EPC business on Cable Production Projects. We have perfect Team on Engineering Design, OEM Production and High Quality Contractor. We have very good experience on supplying all kinds of cable making machineries which are related

to Power cable, control cable, insulated wires & Optical Fiber cable with Turn Key projects as well.

We have good reputations in 36 countries such as USA, Turkey, Czech Republic, Korea & India, Egypt, etc. . We supply not only High Quality machinery, but also good maintenance service to supply spare parts and engineering service. To achieve good satisfaction, you are mostly welcome to visit our factory and interview good machines which are running in China & other countries.
