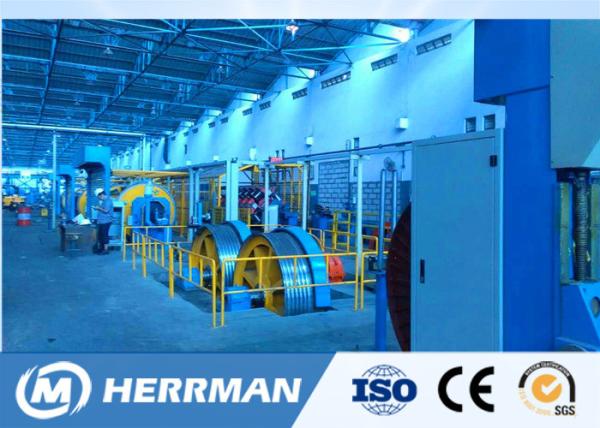

High Speed Rigid Stranding Machine With Pre-spiralled Sector For Milliken Conductor

Application

The machine is mainly used for stranding copper, aluminum and aluminum alloy wires, make compacting or non-compacting round conductor. Non compacted or compacted circular. Circular conductors are compacted with dies. Compacted Sector (pre-spiralled sectors as option)

- material: copper, aluminium, aluminium alloy (with preforming heads)

- shape: round, trapezoidal (for ACSR-tw and T-ACSR-Tw), Pre-spiralled Sector For Milliken Conductor

- size: copper: 1.5 to 4.5 mm

- Size: aluminium (EC grade) : 1.8 to 4.5 mm

- Size: aluminium alloy (max 350 N/mm2) : 1.7 to 4.3 mm (as far as it does not require more than 35 daN tension)

MAIN ADVANTAGES :

- Cage & pintle design : 3 / 4 rows of 4 / 6 bobbins, monoblock pintle/bearing assembly

- Loading/unloading system : electric only and side system

- Reliable wire tension control : pneumatic with remote control and compensation

- Separate drive system : with lay-length control even at power failure.

- Flexible application thanks to electrical shaft and and easy settings with Touch screen control panel.

- Cost competitive solution : proven technology with proven production cost

Main Technical Data

Machine Drawing:
