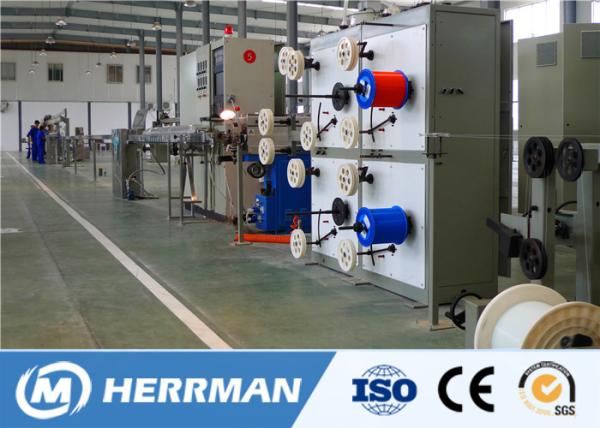

Fiber Optic FTTH Cable Production Line For Premise Cable, 2 - 12 fibers indoor cable, Tight coating line

1. Application

The line is used to producing 2-12 fibers indoor cable and 1-4 fibers FTTH cable .The line is controlled by an industry computer and a PLC. It has high reliability and stability. The materials is PE and LSZH.

2. Main technical data

2.1Tight buffer fiber dia. Φ0.9mm

2.2 Cable dia. Φ6.2mm 12fibers distribution cable

Φ1.6-3.0mm simplex cable

Φ 3.0mm duplex cable

2.0×3.0mm FTTH cable

2.0×5.0mm FTTH cable

2.3 Line speed (structure) 150m/min

Line speed 60m/min(distribution cable with 12fibers )

100m/min(2.0×5.0mm FTTH cable)

2.4 Size of fiber pay-off reel PN235mm, PN400mm

2.5 Size of take-up reel PN800, Max

2.6 Pay-off tension of fiber 0.4N-3.0N±0.05N

2.7 Pay-off tension of aramid yarns SJ65

2.8 Extra-attenuation ≤0.02dB/Km

2.9 Line operation direction appointed by consumer

2.10 Line color appointed by consumer

2.11 Power supply 65Kw

2.12 Line centre height 1000mm

3. Configuration of line

3.1 Menssenger wire pay-off 1set

3.2 Fiber pay-off 12 spools

3.3 SZ standing unit 1set

3.4 Aramid yarn pay-off 10 cops

3.5 Extruder SJ65×25 and one head (with One feeding device and compound dryer ) 1set

3.6 4M Hot water tank 1set

3.7 Hot water tank 1set

3.8 16M cooling trough (with refrigerating device) 1set

3.9 Cooling water tank 1set

3.10 Blowing dryer device 1set

3.11 Diameter control system 1set

3.12 Φ630 Dual wheel capstan 1set

3.13 Swaying beam type tension controller for distribution cable 1set

3.14 Accumulator type tension controller for FTTH andduplec cable 1set

3.15 PN1000 Single reel take-up 1set

3.16 Electric control system 1set

Technical Parameter
