Tight Buffer Fiber Extruding Line optical cable tight coating machine

Description

The Tight Buffer Fiber Extruding Line is used to extrude tight buffer fiber which the diameter is 0.6mm and 0.9mm.The extruding material can be LSZH, PVC.

Feature

High production speed of 300m/m

More precise control on wire diameter

With adoption of automatic dual-spool type take-up.

Main Specification

Line configuration

1 2 spools optical fiber pay-off

2 Preheating and dry device

3 One extruder SJ30×25 one self-center head

(With feed, compound dryer device and master batch)

4 4M Hot water trough

5 Hot water tank

6 12 M cooling trough

7 Cooling water tank (with refrigerating device)

8 Blow dryer device

9 Diameter control system

10 Φ400 capstan

11 Dual reel take-up for tight buffer fiber

12 Electrical control system

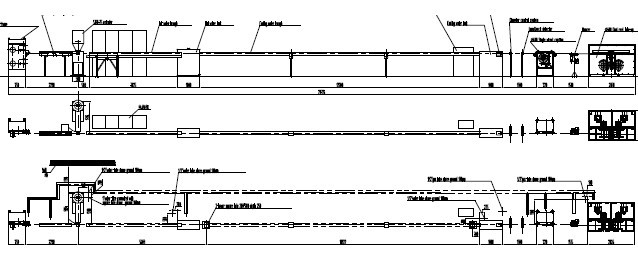

Drawing for reference
