SJ90 Optic fiber cable sheathing line optic fiber cable coating
machine
Description
The SJ90 Optic fiber cable sheathing line is used to extrude inner
sheathing and outer sheathing for optical cable, the extruding
materials: LDPE, MDPE, HDPE and so on.
Feature
High production speed of 90m/m (OD=10mm)
Stable running hot printing device is more suitable for printing at
high speed running.
Main Specification
| Cable Diameter | Ф7-Ф35mm |
| Structure Speed | 100m/min |
| Line Speed | 10--90 m/min |
| Line Length | <60m approximately |
| Screw Type | BM |
| Line center height | 1000mm |
| Pay-off reel size | PN1000-PN2000 |
| Take-up Reel Size | PN1000-PN2000 |
| Extruder Output | Max280kg/h |
Line Configuration
1 Φ1800 Railed pay-off
2 Dual-reel tension dancer for cable core
3 Tension dancer for loose tube
4 Steel wire pay-off and guiding device
(Including steel wire straightening device)
5 Dual Pad Metal Tape Pay-off (unit type)
6 Welding device for Steel(Aluminum) tape
7 Metal Tape (steel-aluminum ) accumulator
8 24-head Kevlar server for Aramid Yarn
9 Metal Tape (Steel-Aluminum) corrugating device
10 Jelly Filling Unit
11 Metal Tape (Steel-Aluminum) longitudinal forming device
12 Adhesive-bonded fabric tape pay-off
13 SJ90×25 extruder and cross head
14 Vacuum application unit
15 Loader and hopper compound dryer
16 Hot-water tank and 4m movable hot-water trough
17 24m stainless steel cooling-water trough
18 Blow dryer device
19 Diameter control device
20 Length number printer and Multi-character printing device
21 Hot Printing Device
22 Caterpillar 1250kg
23 Swaying beam type tension dancer for take-up
24 Φ1800 railed type take-up with traverse
25 Electrical control system

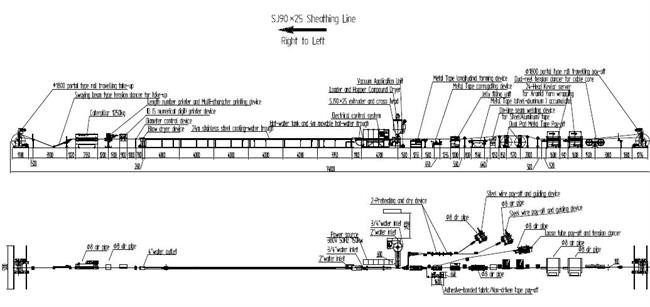

Drawing for reference
