    Nano Diamond Coating Wire Cable Accessories Cable Stranding And Compacting Dies

    Ask Lasest Price
    Brand Name : Herrman
    Model Number : 25-85
    Certification : ISO, SGS
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 1000 pcs per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Nano Diamond Coating Wire Cable Accessories Cable Stranding And Compacting Dies

    Nano Diamond Coating Wire Cable Accessories Cable Stranding And Compacting Dies

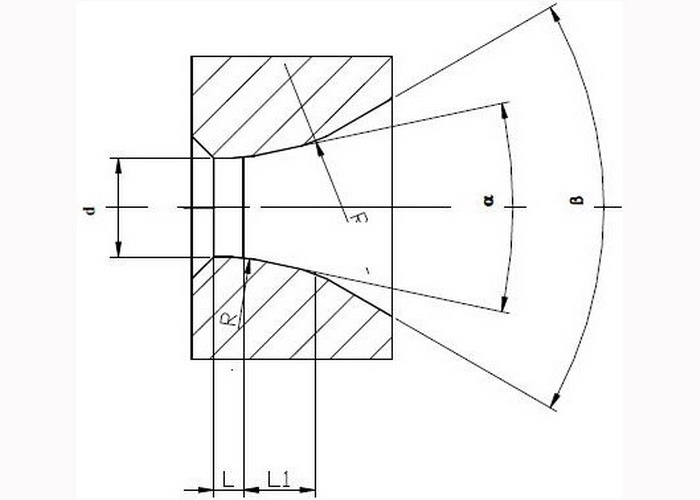

    OD*Height (mm)Hole range (mm)-dReduction angle (°) -αReduction Zone Height(mm)-L1Bearing Length(mm)-Lβ(°)
    20*173-626-305-61-260-80
    22*186-826-305-61.5-2.560-80
    25*188-1126-305-61.5-2.560-80
    30*1811-1426-306-82.0-3.060-80
    35*2214-1626-306-82.0-3.060-80
    38*2216-1926-306-82.5-3.560-80
    40*2519-2126-308-102.5-3.560-80
    45*2421-2426-308-103.0-4.060-80
    50*2824-2826-308-103.0-4.060-80
    60*3028-3726-3010-123.5-4.560-80
    70*3537-4226-3010-124.0-5.060-80
    75*3542-5026-3012-145.0-6.060-80
    85*4050-6026-3012-146.0-7.060-80


    Contrast of three types compacting dies(Size 29.00mm)
    ItemTCPCDNDCD
    Save powerWaste muchWaste a littleMost Save
    Grain of diamond1 μ5-40 μ0.05 μ
    Output50 KM1000 KM500-1500 KM
    LifeShortLongLonger
    SurfaceGoodNot goodExcellent
    RepairMany timesMany timesNo need
    Uniformity of cableNot goodGood100% Excellent
    Diameter changedBigA littleNot changed
    Al Cu ScaleMuchToo MuchNO
    Electrical propertiesNot goodCommonBest
    Withstand Voltage of cableCommonCommonBest
    Life of cableCommonCommonHighest
    ResistanceNot stableNot stableVery stable
    Production efficiencyLowHighHigh
    Usage ratesLess 10%30%60%
    Compacting RatioAL : 0.90-0.90, CU : 0.95-0.97
    Other cost/
    Above info only for your referance
