Optical Fiber Ribbon Secondary Coating Line

Description

Optical Fiber Ribbon Secondary Coating Line is mainly used to produce optical fiber ribbons loose tube (12fibers x 12ribbons).

Specification

Main data of the stranding line

12ribbon fiber pay-off cage
------Reel size	Ф410×Ф50.8×391mm
-----Cage speed max	0-100rpm
-----Driven pay-off speed (structure speed)	70m/min
---- Ribbo n fiber stranding pitch	500mm-3000mm
---- Ribbon fiber pay-off tension	2N-10N±0.5N
-----No. Of reel (max)	12
Gel filling device
----- Filling value max	120L/h
Take-up reel
----Reel diameter	PN1000-PN1250mm
Production line speed	Max70m/min
F.E.L	05%-0.2%(Ф7mm-Ф10.4mm)

Technical Specification requirements

Line operation direction	determined by user
Line colour	determined by user
Overall dimension	length　55m
Line centre height	1000mm
Factory conditions for consumer
---- Pressure	≥0.3Mpa
-----Hardness	≤5°dh
-----PH value	7-8
Compressed air should rustproof, waterproof and grease-dirt
Pressure	≥0.5MPa±.0.2MPa
Dew point	0-25℃
Power supply	Three phrases five wires
	3×380V±10%, 50HZ±2%
Temperature of air-conditioned room	20℃-25℃

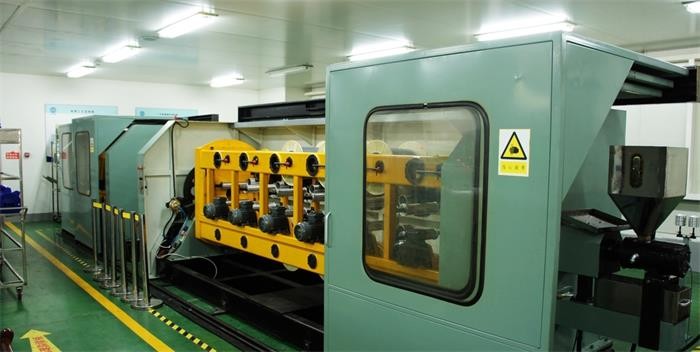

Machine pidcture
