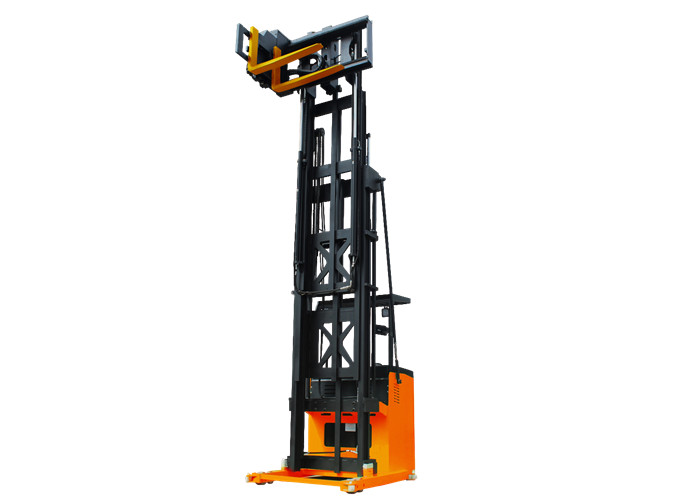

3-Way Narrow Aisle Pallet Stacker 1.5ton 6meters 3 way Electric
Forklift Lifting Height
1. Specification
3-Way Electric Pallet Stacker |
| Characteristics | 1.1 | Model No. | | HM CDDM15-60 |
| 1.2 | Power type | | Electric |
| 1.3 | Operation type | | Stand type |
| 1.4 | Capacity | Q(kg) | 1500 |
| 1.5 | Load center | C(mm) | 600 |
| Total weight | 2.1 | Total weight with battery | kg | <6300 |
| Wheel, Chassis | 3.1 | Wheel type | | PU |
| 3.2 | Driving wheel | ∅×w(mm) | ∅382*142 |
| 3.3 | Front wheel | ∅×w(mm) | ∅145*100 |
| 3.4 | Balance wheel | ∅×w(mm) | ∅180*76 |
| 3.5 | Wheelbase(Front Wheel) | b10(mm) | 1315 |
| Dimension | 4.1 | Mast lowered height | h1(mm) | 3165 |
| 4.2 | Free lift height | h2(mm) | 1980 |
| 4.3 | Lift height | h3(mm) | 6000 |
| 4.4 | Max. height when lifting | h4(mm) | 7185 |
| 4.5 | Height of overhead guards | h14(mm) | 2280 |
| 4.6 | Overall length(Fork forward/back) | l2(mm) | 2690/3920 |
| 4.7 | Overall width | b1(mm) | 1550 |
| 4.8 | Channel guide width | (mm) | 1600 |
| 4.9 | Fork size | s/e/l(mm) | 45/125/1220 |
| 4.10 | Fork speed(Customizable) | b5(mm) | 260-650 |
| 4.11 | Min ground clearence | m2(mm) | 32 |
| 4.12 | Channel shelf width | Ast(mm) | 1760(1200*1200 Pallet) |
| 4.13 | Channel guide height | (mm) | 120 |
| 4.14 | Min. turning radius | Wa(mm) | 1910 |
| 4.15 | Main channel width | mm | 3560 |
| Performance | 5.1 | Max. travel speed(Unload/load) | km/h | 8/7 |
| 5.2 | Lifting speed (Unload/load) | m/s | 0.275/0.215 |
| 5.3 | Decent speed(Unload/load) | m/s | 0.150/0.195 |
| 5.4 | Driving brake | | Electromagnetic |
Motor, charger | 6.1 | Driving motor | kw | 6.5 |
| 6.2 | Lifting motor | kw | 8.6AC |
| 6.3 | Battery type | | Lead Acid |
| 6.4 | Battery voltage/capacity | V/Ah | 48V/100Ah |
| 6.5 | Charger | V/Ah | 48V/50A |
| Other | 7.1 | Control model | | AC |
2.Configuration
1,CURTIS controller
2,ALBRIGHT contactor
3,CURTIS control accelerator
4,AC drive motor
5,Brand instrument
6,Brand multi way valve and gear oil pump
7,Key components such as oil seal and oil pipe are imported
8,Side pull battery
9,External 48V intelligent charger
10,Polyurethane solid tire with high wear resistance
11,Drive wheel position display
12,Cylinder safety shut-off valve
13,Electromagnetic brake system
14,Electronic power steering
3. PACKING&SHOPING

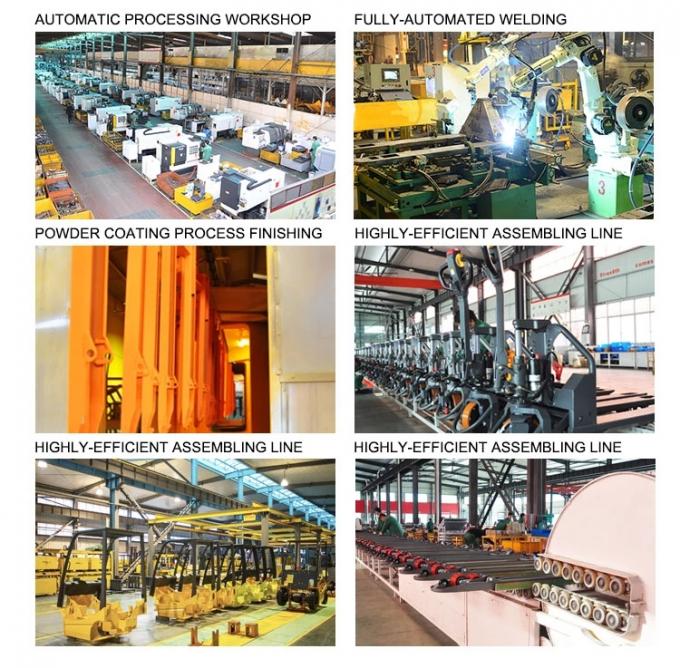

4.PRODUCTION SCENE
5.FAQ
Q1: Can Herrman provide customized products? OEM products or ODM
products?
A1: Yes, Herrman can provide customized products according to your
requirement. Both OEM and ODM are acceptable. We do a lot
ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the
customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we
receive the advanced payment. For some standard products, we have
most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.And
accepted Payment Type: L/C,D/P D/A,MoneyGram,Credit
Card,PayPal,Western Union,Cash,Escrow;
Q6: What can I get from cooperating with Herrman?
A6: 1). Unique products, with customized service.
2). Timely production and delivery, time is money.
3). Market protection service, long term business strategy.
Q7:how can we guarantee quality?
A7:1).Always a pre-production sample before mass production.
2).Always final Inspection before shipment.
Q8: what services can we provide?
A8:1).Accepted Delivery Terms:
FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express
Delivery,DAF,DES；
2).Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
3).Language
Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
