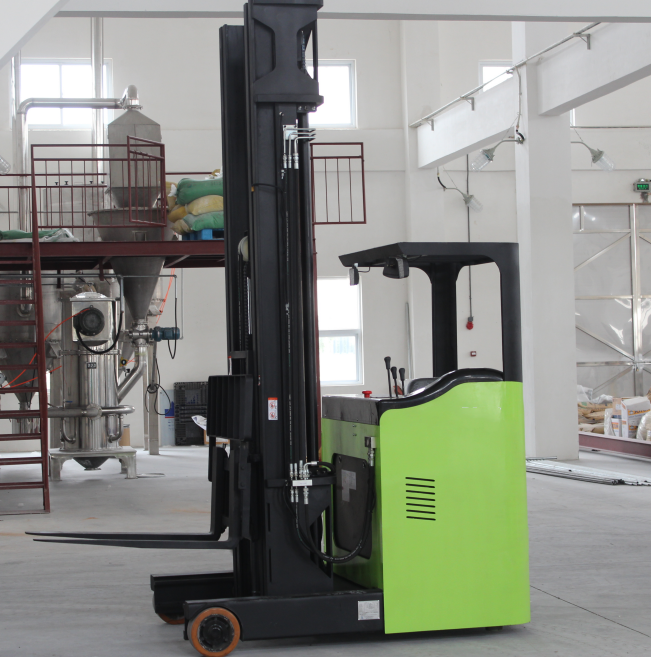

Hot Sales Narrow Channel Used 48V 00kg Load Capacity EPS Electric
Reach Forklift
1. Specification
Electric Reach Forklift (Stand Type)48V HM CQD |
| Characteristics | 1.1 | Model No. | | HM CQD15-45S |
| 1.2 | Power type | | Electric |
| 1.3 | Operation type | | Stand Type |
| 1.4 | Load capacity | Q(kg) | 1500 |
| 1.5 | Load center | C(mm) | 500 |
| 1.6 | Wheelbase | Y(mm) | 1383 |
| 1.7 | Reach distance | L(mm) | 530 |
| Total weight | 2.1 | Total weight with battery | kg | 2700 |
| Wheel, Chassis | 3.1 | Wheel type | | PU |
| 3.2 | Front wheel | ∅×w(mm) | ∅267*114 |
| 3.3 | Driving wheel | ∅×w(mm) | ∅382*142 |
| 3.4 | Balance wheel | ∅×w(mm) | ∅180*76 |
| 3.5 | Wheel tread, front wheel(Above 6.5m) | b10(mm) | 1081 |
| Dimension | 4.1 | Mast lowered height | h1(mm) | 2100 |
| 4.2 | Free lift height | h2(mm) | 1500 |
| 4.3 | Lift height | h3(mm) | 4500 |
| 4.4 | Max. height when lifting | h4(mm) | 5480 |
| 4.5 | Height of overhead guards | h14(mm) | 2280 |
| 4.6 | Fork height when mast closed | h13(mm) | 35 |
| 4.7 | Mast tilt angle forward/backward | . | 3/5 |
| 4.8 | Overall length(Without fork)(Above 6.5m) | l1(mm) | 1752/2400 |
| 4.9 | Overall width(Above 6.5m) | b1(mm) | 1195 |
| 4.10 | Fork size | s/e/l(mm) | 35/100/1070 |
| 4.11 | Fork spread | b5(mm) | 210-705 |
| 4.12 | Min ground clearence | m2(mm) | 80 |
| 4.13 | Aisle width for pallet 1000*1200 crossaway(Above 6.5m) | Ast(mm) | 2730 |
| 4.14 | Min. turning radius(Above 6.5m) | Wa(mm) | 1680 |
| Performance | 5.1 | Max. travel speed(Unload/load) | km/h | 8/7 |
| 5.2 | Lifting speed (Unload/load) | m/s | 0.330/0.245 |
| 5.3 | Lowering speed(Unload/load) | m/s | 0.260/0.325 |
| 5.4 | Max. Grade ability(Unload/load) | % | ≦10 |
| 5.5 | Brake type | | Electromagnetic |
Motor, charger | 6.1 | Driving motor | kw | 4.5 |
| 6.2 | Lifting motor | kw | 6.3DC |
| 6.3 | Battery type | | Lead Acid |
| 6.4 | Battery capacity | V/Ah | 48V/300Ah |
| 6.5 | Charger | V/Ah | 48V/40A |
| Other | 7.1 | Drive controlling type | | AC |
| 7.2 | EN12053 Noise level in driver’s ear | dB(A) | 75 |
2.Configuration
1,US CURTIS Control system,Stepless speed regulation;
2,Brand contactor;
3,Brand hydraulic lifting pump station;
4,48V/400AHLead acid battery;
5,48V/50Aexternal intelligent charger;
6,Brand sealing elements;
7,Vertical AC drive motor;
8,Vertical transmission gearbox;
9,High wear resistant polyurethane wheel(Bearing wheel, driving
wheel and balancing wheel);
10,Pedal foot switch, seat, steering wheel;
11,Fork lift with buffer;
12,Forged fork, suitable for single and double pallets;
13,Multi function electricity meter;
14,Electromagnetic brake;
15,Electric Power Steering.
3. PACKING&SHOPING
4.PRODUCTION SCENE
5.FAQ
Q1: Can Herrman provide customized products? OEM products or ODM
products?
A1: Yes, Herrman can provide customized products according to your
requirement. Both OEM and ODM are acceptable. We do a lot
ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the
customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we
receive the advanced payment. For some standard products, we have
most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.And
accepted Payment Type: L/C,D/P D/A,MoneyGram,Credit
Card,PayPal,Western Union,Cash,Escrow;
Q6: What can I get from cooperating with Herrman?
A6: 1). Unique products, with customized service.
2). Timely production and delivery, time is money.
3). Market protection service, long term business strategy.
Q7:how can we guarantee quality?
A7:1).Always a pre-production sample before mass production.
2).Always final Inspection before shipment.
Q8: what services can we provide?
A8:1).Accepted Delivery Terms:
FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express
Delivery,DAF,DES；
2).Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
3).Language
Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
