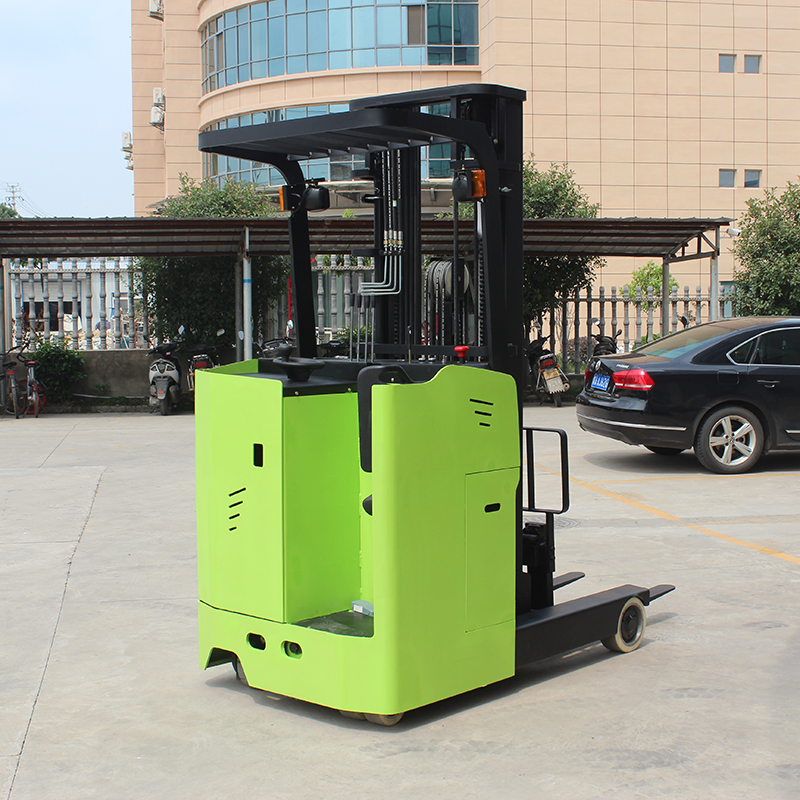

1.5T Stand Up Reach Electric Stacker For Cold Storage/Room Use
1. Specification
| Electric Reach Forklift (Stand Type)24V (HM CQD15D-45S) |
| Characteristics | 1.1 | Model No. | | CQD15D-45S |
| 1.2 | Power type | | Electric |
| 1.3 | Operation type | | Stand Type |
| 1.4 | Load capacity | Q(kg) | 1500 |
| 1.5 | Load center | C(mm) | 500 |
| 1.6 | Front overhang | X(mm) | 145 |
| 1.7 | Wheelbase | Y(mm) | 1399 |
| Total weight | 2.1 | Total weight with battery | kg | 2200 |
| Wheel, Chassis | 3.1 | Wheel type | | PU |
| 3.2 | Front wheel | ∅×w(mm) | ∅254*104 |
| 3.3 | Driving wheel | ∅×w(mm) | ∅230*75 |
| 3.4 | Balance wheel | ∅×w(mm) | ∅150*50 |
| 3.5 | Wheel tread, front wheel | b10(mm) | 970 |
| 3.6 | Wheel tread, rear wheel | b11(mm) | 804 |
| Dimension | 4.1 | Mast lowered height | h1(mm) | 2120 |
| 4.2 | Lift height | h3(mm) | 4500 |
| 4.3 | Max. height when lifting | h4(mm) | 5485 |
| 4.4 | Height of overhead guards | h14(mm) | 2280 |
| 4.5 | Fork height when mast closed | h13(mm) | 35 |
| 4.6 | Mast tilt angle forward/backward | . | 3/5 |
| 4.7 | Overall length | L1(mm) | 2283 |
| 4.8 | Body length | l2(mm) | 1703 |
| 4.9 | Overall width | b1(mm) | 1098 |
| 4.10 | Fork size | s/e/l(mm) | 35/100/1070 |
| 4.11 | Fork adjustment size | b5(mm) | 210-705 |
| 4.12 | Reach distance | l4(mm) | 500 |
| 4.13 | Min ground clearence | m2(mm) | 77 |
| 4.14 | Aisle width for pallet 1000*1200 crossaway | Ast(mm) | 2771 |
| 4.15 | Min. turning radius | Wa(mm) | 1600 |
| Performance | 5.1 | Max. travel speed(Unload/load) | km/h | 5/4 |
| 5.2 | Lifting speed (Unload/load) | m/s | 0.135/0.110 |
| 5.3 | Lowering speed(Unload/load) | m/s | 0.085/0.132 |
| 5.4 | Max. Grade ability(Unload/load) | % | 8/4 |
| 5.5 | Brake type | | Electromagnetic |
Motor, charger | 6.1 | Driving motor | kw | 2.5 |
| 6.2 | Lifting motor | kw | 3DC |
| 6.3 | Battery type | | Lead Acid |
| 6.4 | Battery capacity | V/Ah | 24V/280Ah |
| 6.5 | Charger | V/Ah | 24V/40A |
| Other | 7.1 | Drive controlling type | | AC |
| 7.2 | EN12053 Noise level in driver’s ear | dB(A) | 75 |
2.Configuration
1,US CURTIS Control system,Stepless speed regulation；
2,Brand contactor,
3,Brand hydraulic lifting pump station;
4,24V/280AH Lead acid battery；
5,24V / 40A external intelligent charger.
6,Imported sealing elements
7,Vertical AC drive motor
8,Vertical transmission gearbox
9,High wear resistant polyurethane wheel(Bearing wheel, driving
wheel and balancing wheel)
10,Curve speed limiter
11,Electric Power Steering
12,Multi function electricity meter
13,Electromagnetic brake
3. PACKING&SHOPING
4.PRODUCTION SCENE
5.FAQ
Q1: Can Herrman provide customized products? OEM products or ODM
products?
A1: Yes, Herrman can provide customized products according to your
requirement. Both OEM and ODM are acceptable. We do a lot
ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the
customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we
receive the advanced payment. For some standard products, we have
most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.And
accepted Payment Type: L/C,D/P D/A,MoneyGram,Credit
Card,PayPal,Western Union,Cash,Escrow;
Q6: What can I get from cooperating with Herrman?
A6: 1). Unique products, with customized service.
2). Timely production and delivery, time is money.
3). Market protection service, long term business strategy.
Q7:how can we guarantee quality?
A7:1).Always a pre-production sample before mass production.
2).Always final Inspection before shipment.
Q8: what services can we provide?
A8:1).Accepted Delivery Terms:
FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express
Delivery,DAF,DES；
2).Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
3).Language
Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
