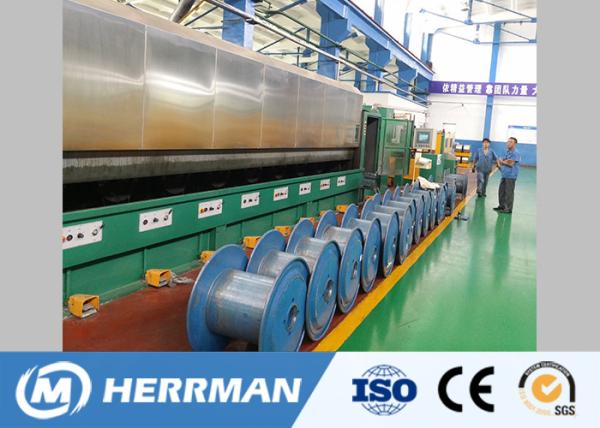

Copper Alloy Wire Drawing Machine 22mm Diameter For Copper Magnesium

    Buy cheap Copper Alloy Wire Drawing Machine 22mm Diameter For Copper Magnesium from wholesalers

    Buy cheap Copper Alloy Wire Drawing Machine 22mm Diameter For Copper Magnesium from wholesalers
    • Buy cheap Copper Alloy Wire Drawing Machine 22mm Diameter For Copper Magnesium from wholesalers

    Copper Alloy Wire Drawing Machine 22mm Diameter For Copper Magnesium

    Ask Lasest Price
    Brand Name : Herrman
    Model Number : 1200/1+1000/4
    Certification : CE, UL, GS, SGS, TUV, ISO
    Price : By Negotiation
    Payment Terms : L/C, D/A, D/P, T/T or By Negotiation
    Supply Ability : 10 SETS PER MONTH
    Delivery Time : 128 DAYS
    • Product Details
    • Company Profile

    Copper Alloy Wire Drawing Machine 22mm Diameter For Copper Magnesium

    High Speed Copper Alloy Trolley Wire Drawing Machine For Copper Magnesium


    Application


    This line is use for drawing the copper alloy contact wire which used in the electrified railway, drawing the 20~22mm rod to 10.8~14.4mm contact wire.


    Main Feature


    1. Every drawing capstan is driven by individual motor. Dies arrangement is flexible.


    2. The surface of drawing capstan is painted with tungsten carbide and processed by grinding treatment, which guarantee the long service life of drawing capstan.


    3. Adopt inside and outside water circulation system to coll the drawing capstan. The sufficient cooling avoid the wire overhead and improve the drawing speed effectively.


    4. Adopt DC motor and imported DC speed regulator to control the running of motor. Adopt imported PLC to command and command and coordinate the whole line. Adopt imported 10.4 inch color touch screen to display and set the parameter.


    Main Technical Specification


    Type1200/1+1000/41000/4Drawing Material
    Inlet Wire Dia.(mm)20~2220copper
    Outlet Wire Dia. (mm)10.8~14.4mm10.8~14.4mmcopper silver
    Section Elongation20~47%20~47%Cu-Sn copper magnesium
    Max. drawing Speed(m/min)6060Al or Al alloy flat wire
    Motor power1 pc of 75kw, 4pcs of 55kw, DC1 pc of 75kw, 3pcs of 55kw, DC
    Ratio of reducer80~20080~140
    Pay off reel20002000
    Take up reel20002000

    Machine Drawing

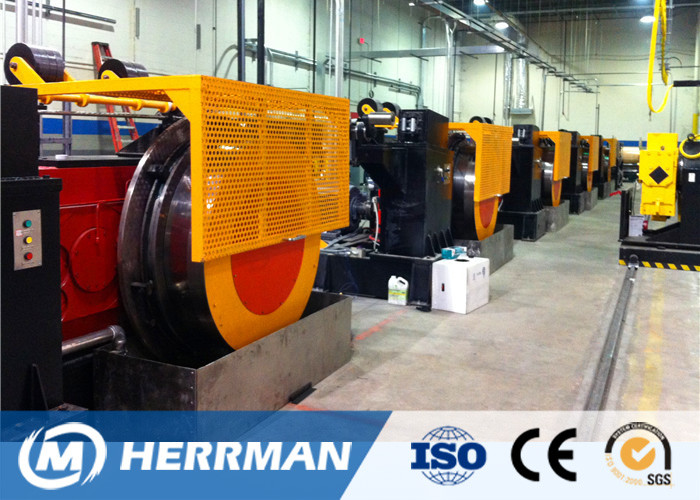

    Machine Photo
