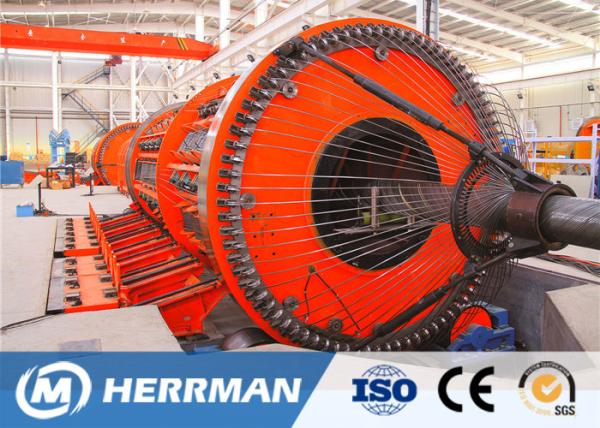

Rigid type armoring machine
1.Description
Rigid type armoring machine is used for steel wire armoring of power cable.
2.Main Technical Specification
2.1 Reel Size: 400mm,500mm,630mm,710mm,800mm
2.2 Ree QTY of Singe cage: 6B- 48 bobbin
2.3 Clamping type : Pneumatic , Motor clamping,Manual Clamping
2.4 Tension control: Hysteresis , Mechanica, Mechanical with feedback,Pneumatic tension control
52. Reel Loading: Side-bottom Hydraulic loading, Side-bottom Electrical loading, Side loading
Main Specification
Reel Size | Max. rotation speed(rpm) | Wire dia. | |||||||
6B | 12B | 18B | 24B | 30B | 36B | Aluminum | Copper | ||
500mm | 273 | 225 | 198 | 173 | 151 | 120 | 1.8~5.0(mm) | ||
242 | 199 | 175 | 153 | 133 | 96 | 1.2~5.0(mm) | |||
630mm | Normal | 218 | 189 | 166 | 146 | 130 | 103 | 1.8~5.0(mm) | |
190 | 167 | 147 | 129 | 115 | 82 | 1.2~5.0(mm) | |||
High speed | 310 | 290 | 250 | 215 | 185 | 135 | 1.8~5.0(mm) | ||
210 | 195 | 170 | 145 | 128 | 108 | 1.2~5.0(mm) |
Drawing for reference
![]() |
