Name: Caterpillar Type Wire Cable Machine Pneumatic Pultrusion Machine High Performance
Brand: HERRMAN
Price: 1 USD

Add to Cart

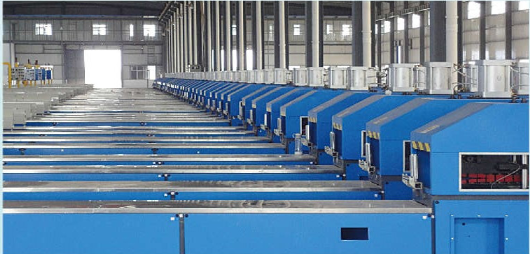

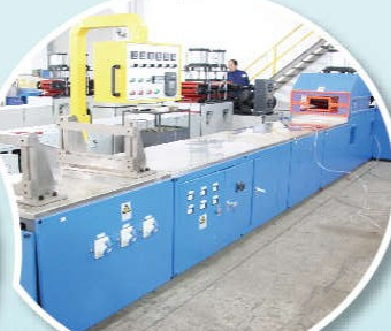

Caterpillar type Pneumatic Pultrusion Equipment

Model	NLY-4TL	NLY-5TL	NLY-7TL
Max.Pulling Force (Kgf)≥	4.000	5.000	20.000
Max.Clamping Force (Kgf) ≥	4.000	5.000	20.000
Pulling speed range (m/min)	0.2-1.5	0.2-1.5/0.02-0.3	0.2-1.5/0.02-0.3
Max.Clamping space (mm*mm)	200*8	350*80	500*80
System Motor Power (kw)	4.0	5.5	7.5
Temperature range for die heating (℃)		0-250℃
Precision of Temperature control℃		±1℃
Exterior Machine size(L/W/H)(m)	7.51.41.8	7.51.51.8	7.51.71.8
Machine Control	Ttansducer
Puller Clamp length (mm) ≥	2000	1500/2000	1500

Model	NLY-7T/PU	NLY-10TL	NLY-12TL	NLY-25TL
Max.Pulling Force (Kgf)≥	7.000	10.000	20.000	25.000
Max.Clamping Force (Kgf) ≥	7.000	10.000	12.000	25.000
Pulling speed range (m/min)	0.3-2.0	0.2-1.5	0.2-1.5	0.2-1.5
Max.Clamping space (mmmm)2008		100080/115080	350*150	1000*100
System Motor Power (kw)	7.5	7.5	7.5	11
Temperature range for die heating (℃)		0-250℃
Precision of Temperature control℃		±1℃
Exterior Machine size(L/W/H)(m)	91.11.8	51.91.8	111.72.0	7.51.91.8
Machine Control	Ttansducer
Puller Clamp length (mm) ≥	3000/4000	1500	1700	3000
