Name: Copper Brass Wire Cable Accessories Nano Diamond For Drawing Tube
Brand: Herrman
Price: 501 USD

Add to Cart

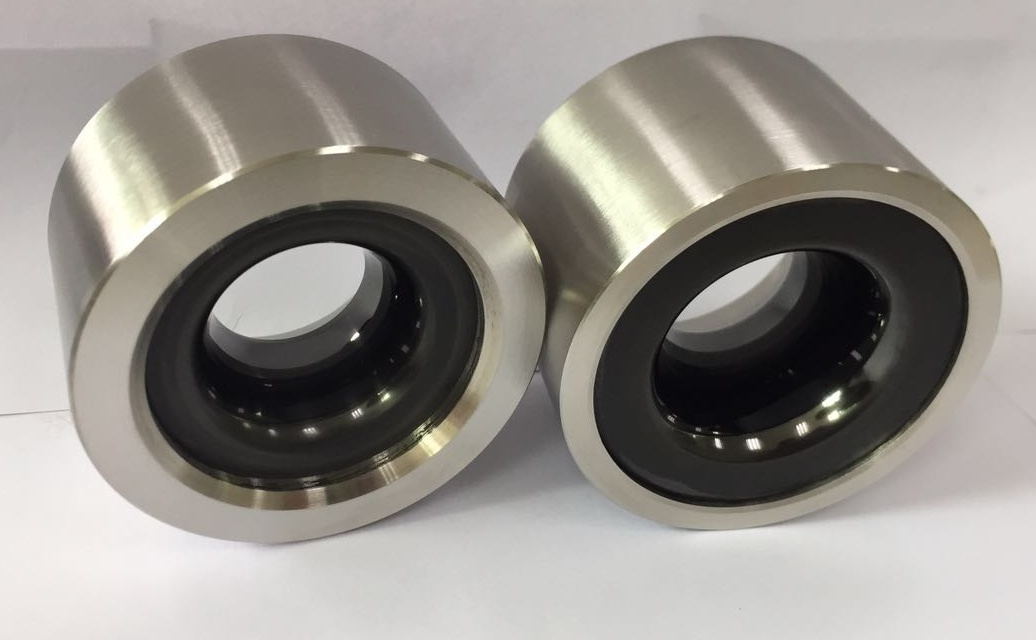

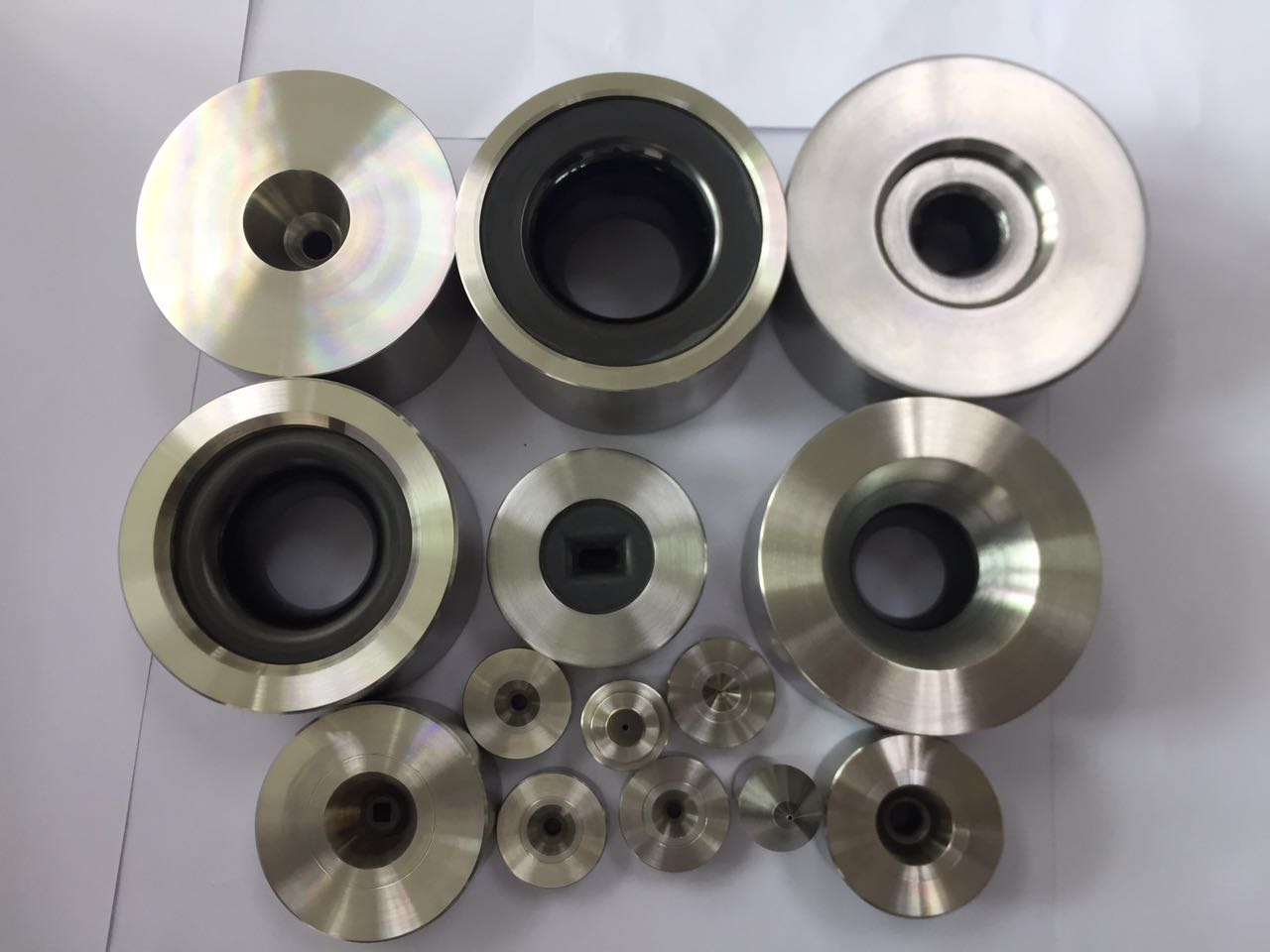

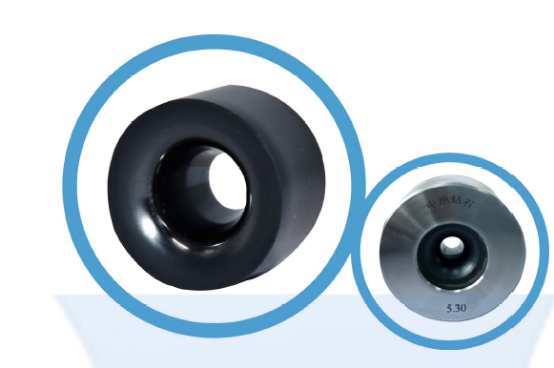

Wire Cable Accessories NANO diamond for drawing tube

Application : copper /brass(plug drawing die ). Copper /brass(sinking drawing).

Low carbon steel (sinking drawing ). Stainless steel(sinking drawing)

Size range :0.8-16mm(steel tube)

0.8-80(copper tube)

Item	TC	PCO	NDCD
Cost(RMB)	1000	30000	8000
Save Material	Save conductor material appro 1-2%.For example, produce 1 ton copper cable, USD 9000 per ton ,USD 90001%=USD 90 save USD 90 per ton copper. 3 ton per km, we ensure output 500km=1500 ton ,1500 ton USD90=135000USD Save 13500USD per die,but cost of die only USD1400
Grain of diamond	1μ	5-40μ	0.05μ
Output	50km	1000km	500-1500km
life	short	long	longer
Surface	good	Not good	Excellent
Repair	Many times	Many times	No need
Uniformity of cable	Not good	Good	100% excellent
Diameter changed	big	A little	Not change
Save power	Waste much	Waste a little	Most save
Al Cu Scale	Much	Much	Few
Electrical properties	Not good	common	Best
Life of able	Common	Common	Highest
Resistance	Not stable	Not stable	Very stable
Production efficiency	Low	High	High
Useage rates	Less 10%	30%	60%
Compacting ratio	Cu :0.95-0.97 Al:0.90-0.90
Compacting Ratio	Nano diamond coating compacting dies not only save material cost, but also save human cost , manage cost, cost of power. Help you to have a more clear environment
Above info only for you referance
