Brand Name : | HERRMAN |
Model Number : | HM800 |
Certification : | ISO9001:2015,CE |
Price : | by negotiated |
Payment Terms : | L/C, D/A, D/P, T/T |
Supply Ability : | 15 sets per month |
Delivery Time : | 90 working days |
product description
1.application
It is mainly used for stranding multi-strand copper wire, tin-coated wire, silver-coated wire and insulated wire.
2.Main technical data
Inlet wire diameter | 0.3-1.32mm |
Pitch | 29-157mm |
Rotating speed of skip bow | 0-1200RPM |
Max. bunching OD | 9mm |
Stranding section | 4-16mm2 |
Speed regulating system | by inverter,controlled by touch screen |
Main motor | 15kw |
Take-up reel | as per user's drawing |
Bearing | NSK |
Inverter | Schneider |
PLC,touch screen | Siemens |
Lifting system | by electric&hydraulic |
Safety system | when runing this line ,all the doors have linking protection |
Machine | as per request |

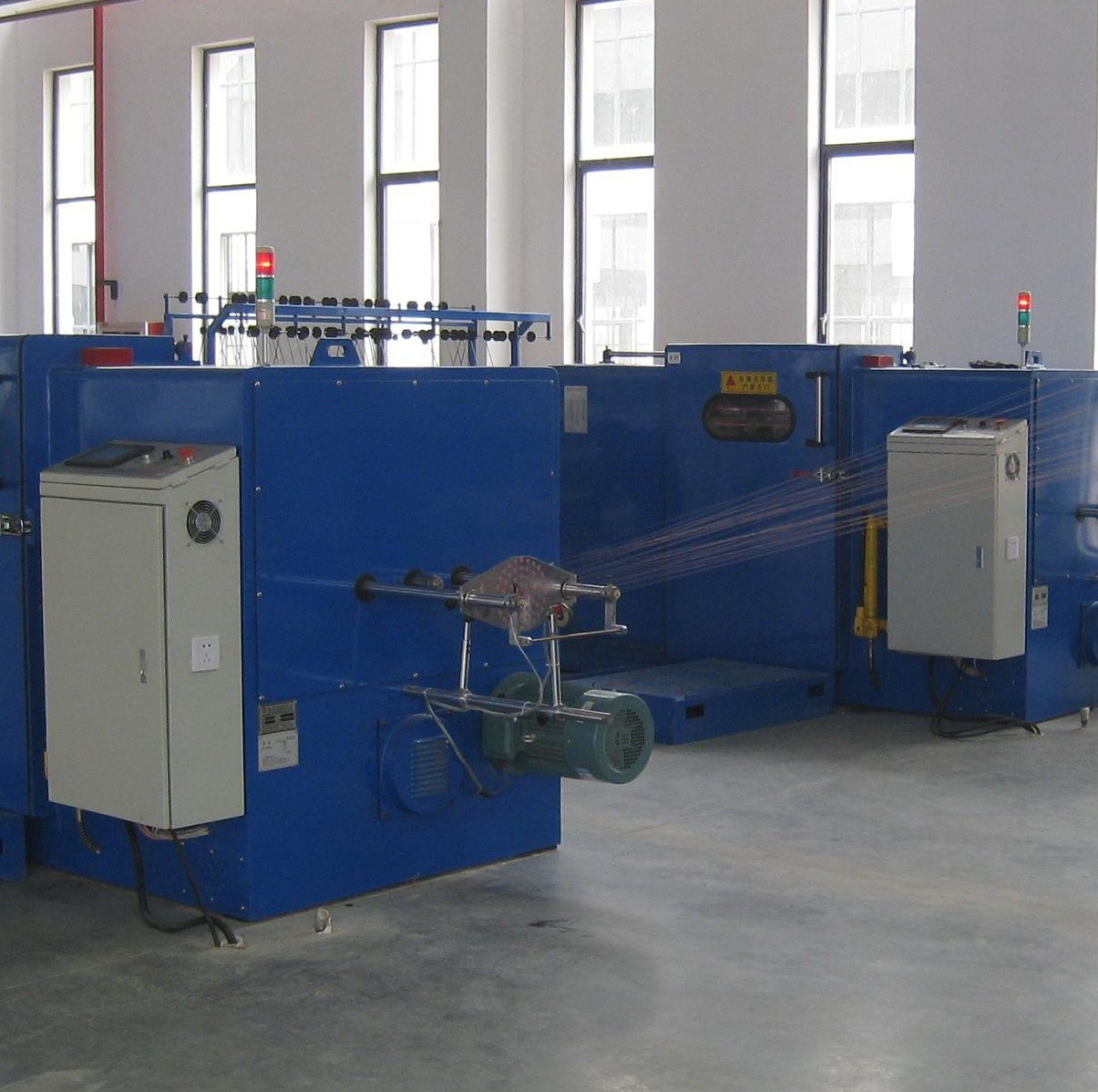

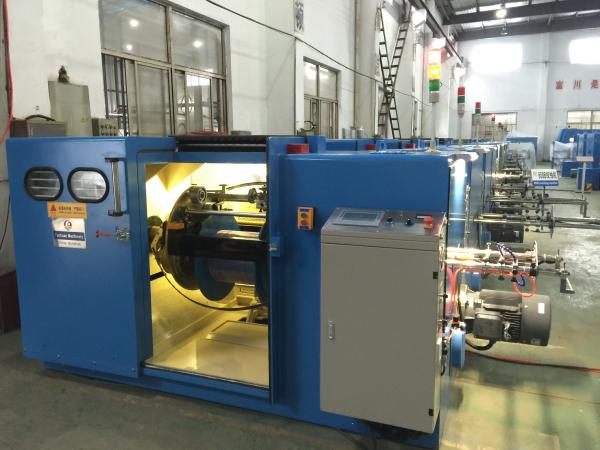

3.finished product photo
>>
![]() |
