PRODUCT DESCRIPTION

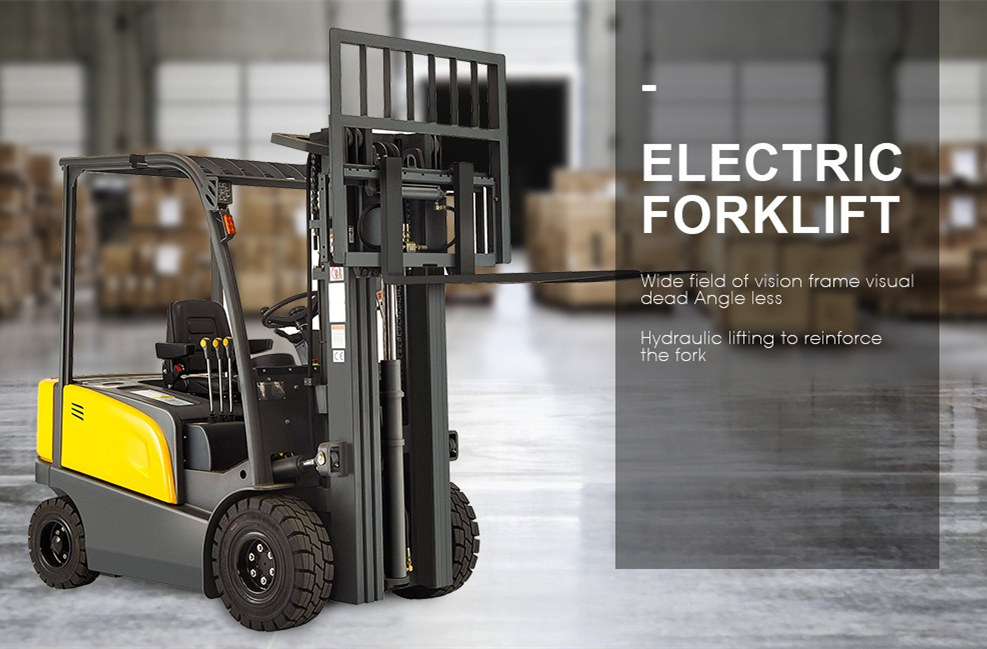

2/2.5ton 48V Hydraulic Lithium Battery Forklift With Solid Tyre For
Refrigeration Storage
OPTIONAL:
1.Side-way battery box 2.Electromagnetic valve
3.Shock-absorbing chair,with power disconnect function
4.Dual-front-wheels
5.Adjustable lifting motor speed system
6.Cold storage application
7.Lithium battery
8.FB20R Lithium battery 350AH (Charger 48V/100A)
FB25R Lithium battery 450AH (Charger 48V/200A)
Remark:
The date is based on the lifting height 3000mm;Lifting height from
3000mm to 6000mm are available;
Electric controller selection (1)standard:Enpower
(2)Option:Curtis,Inmotion,ZAPI
SIZE INFORMATION
| Model | | FB20R(semi-AC) | FB20R(Full-AC) | FB25R(semi-AC) | FB25R(Full-AC) |
|
| Power | | electric | electric | electric | electric |
|
| Operation type | | seated | seated | seated | seated |
|
| Capacity/rated load | Q(kg) | 2000 | 2000 | 2500 | 2500 |
| Load centre distance | c(mm) | 500 | 500 | 500 | 500 |
| Lift height | h3(mm) | 3000-6000 | 3000-6000 | 3000-6000 | 3000-6000 |
| Load distance,centre of drive axle to fork | x(mm) | 395 | 395 | 445 | 445 |
| wheelbase | Y(mm) | 1480 | 1480 | 1480 | 1480 |
| Service weight(with battery) | kg | 3315 | 3500 | 4050 | 4150 |
| Tyre type | | pneumatic/solid | pneumatic/solid | pneumatic/solid | pneumatic/solid |
|
| Tread,front | b10(mm) | 930 | 930 | 970 | 970 |
| Tread,rear | b11(mm) | 920 | 920 | 970 | 970 |
| Height,mast lowered | h1(mm) | 2015-2610 | 2015-2610 | 2050 | 2050 |
| Height,mast extended | h4(mm) | 4050-7050 | 4050-7050 | 4050-7050 | 4050-7050 |
| Height of overheard guard (cabin) | h6(mm) | 2100 | 2100 | 2100 | 2100 |
| Seat height/stand height | h7(mm) | 1040 | 1040 | 1040 | 1040 |
| Height of traction bolt | h10(mm) | 260 | 260 | 260 | 260 |
| Overall length | l1(mm) | 3270 | 3270 | 3310 | 3310 |
| Length of face of forks | l2(mm) | 2200 | 2200 | 2240 | 2240 |
| Overall width | b1(mm) | 1130 | 1130 | 1200 | 1200 |
| Fork dimensions | s/e/l(mm) | 40/120/1070 | 40/120/1070 | 40/120/1070 | 40/120/1070 |
| Fork-carriage width | b3(mm) | 1088 | 1088 | 1160 | 1160 |
| Aisle width for pallets1000*1200crossways | Ast(mm) | 3600 | 3600 | 3700 | 3700 |
| Aisle width for pallets 800*1200 lengthways | Ast(mm) | 3800 | 3800 | 3900 | 3900 |
| Turning radius | Wa(mm) | 2080 | 2080 | 2180 | 2180 |
| Travel speed,laden/unladen | Km/h | 44178 | 44178 | 44178 | 44178 |
| Lift speed,lanen/unladen | m/s | 0.24/0.36 | 0.28/0.32 | 0.24/0.36 | 0.26/0.3 |
| Lowering speed,laden/unladen | m/s | 0.36/0.42 | 0.36/0.42 | 0.36/0.42 | 0.36/0.42 |
| Battery voltage,nominal capacity K5 | V/Ah | 48/450(500.560.630) | 48/500(560.630) | 48/500(560.630) | 48/560(630) |
FAQ
Q1: Can Herrman provide customized products? OEM products or ODM
products?
A1: Yes, Herrman can provide customized products according to your
requirement. Both OEM and ODM are acceptable. We do a lot
ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the
customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we
receive the advanced payment. For some standard products, we have
most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
