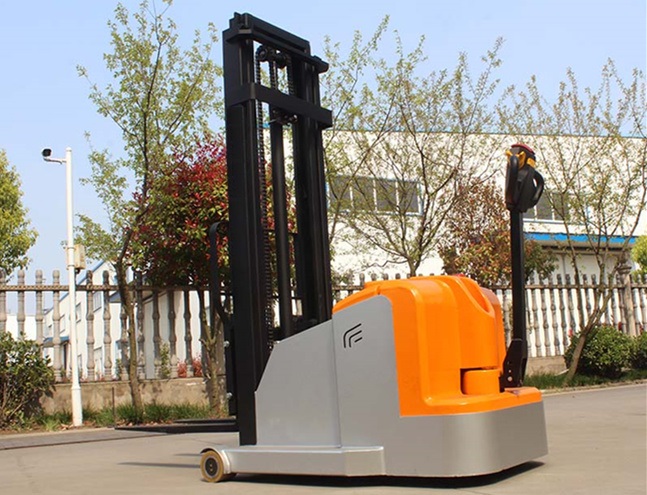

Walkie Counterbalanced Type Electric Pallet Stacker Capacity 1000kg
Lifting height 2500mm
1.Technical Specification
| Electric Pallet Stacker(Walkie Counterbalanced Type)HM CPDB10W-25 |
| Characteristic | 1.1 | Model No. | | CPDB10W-25 |
| 1.2 | Power type | | Electric |
| 1.3 | Operation mode | | Walking type |
| 1.4 | Read load capacity | Q(kg) | 1000 |
| 1.5 | Load center | C(mm) | 500 |
| 1.6 | Front overhang | X(mm) | 76 |
| 1.7 | wheelbase | Y(mm) | 1070 |
| Total weight | 2.1 | Self-weight with battery | kg | ~1250 |
| Wheel, chassis | 3.1 | Wheel type | | PU |
| 3.2 | Front wheel | ∅×w(mm) | ∅140x100 |
| 3.3 | Front wheel | ∅×w(mm) | ∅210x70 |
| 3.4 | Wheel track, front Wheel | b2(mm) | 805 |
| Dimension | 4.1 | Height when the mast is retracted | H1(mm) | 1815 |
| 4.2 | Free lifting height | h2(mm) | 0 |
| 4.3 | Lifting height | H(mm) | 2500 |
| 4.4 | Max. height of mast when lifting | H2(mm) | 3412 |
| 4.5 | Fork height when mast retracts | H3(mm) | 35 |
| 4.6 | Vehicle body length | L(mm) | 2658 |
| 4.7 | Vehicle body width | b1(mm) | 916 |
| 4.8 | Fork size | s/e/l(mm) | 1070*100*35 |
| 4.9 | Fork adjustment | b5(mm) | 200-590 |
| 4.10 | Min. ground clearance (wheelbase center) | m2(mm) | 40 |
| 4.11 | Stacking channel width, pallet 1000×1200 (1200 placed across forks) | Ast(mm) | 2956 |
| 4.12 | Stacking channel width, pallet 1000×1200 (1000 placed across forks) | Ast(mm) | 3094 |
| 4.13 | Min. turning radius | Wa(mm) | 1528 |
| Performance | 5.1 | Driving speed, no load / full load | km/h | 4.0/3.5 |
| 5.2 | Lifting speed, no load / full load | m/s | 0.215/0.130 |
| 5.3 | Descent speed, no load / full load | m/s | 0.105/0.130 |
| 5.4 | Max. gradeability, no load/full load | % | 5.0/4.0 |
| 5.5 | Service brake | | Electromagnetic |
| Motor,charger | 6.1 | Drive motor power | kw | 0.75 |
| 6.2 | Lifting motor power | kw | 2.2 |
| 6.3 | Battery | | Lead-acid battery |
| 6.4 | Battery capacity / Vol. | V/Ah | 24/100 |
| 6.5 | Charger | V/A | 24V/10A |
| Other | 7.1 | Driving control model | | DC |
| 7.2 | The noise level in the driver's ear is based on EN12053 | dB(A) | 70 |
2.Description
1. Compared with similar products in the market, we have smaller
turning radius and channel, larger load center distance (500mm),
and better performance.
2. CURTIS control system, with multiple automatic protection
systems, provides a higher level of functional security.
3. Maintenance-free battery (optional lithium), no need to fill
liquid, easy maintenance and labor saving, built-in charger. Easy charging, clamshell is charged.
4. Excellent layout structure. The parts are easy to disassemble and assemble, and easy to
maintain.
3.PRODUCTION SCENE
4.PACKING&SHOPING
5.FAQ
Q1: Can Herrman provide customized products? OEM products or ODM
products?
A1: Yes, Herrman can provide customized products according to your
requirement. Both OEM and ODM are acceptable. We do a lot
ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the
customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we
receive the advanced payment. For some standard products, we have
most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
