Rear Wheel Driven 1500kg 3 Wheel Electric Counterbalance Forklift

Ask Lasest Price
Brand Name :	HERRMAN
Model Number :	CPD15S-E
Certification :	ISO,CE,CQC,IQNET,CNAS
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, O/AWestern Union, MoneyGram
Supply Ability :	200 Unit/Units per Month
Delivery Time :	21-30 work days

Add to Cart

Product Details
Company Profile

Rear Wheel Driven 1500kg 3 Wheel Electric Counterbalance Forklift

PRODUCT DESCRIPTION

New Design 3 Wheel 1.5ton/1500kg Electric Power Fork Lift Electric Forklift With AC Motor

Advantages:

Using Herrman self developed rear wheel driven design, with stable quality, small turning radius, and very good pass through abilities.
Rated capacity is 1500kg with side shift, all panels use steel with compact appearance and good durability.
Use AC motor without brush, free of maintenance.
High gradeability up to 10% with full laden.
The electric brake is used as the parking brake, which is easy
to operate and safe.
Use hydraulic power steering is for light steering, have the function of steering priority.
Have option of cold-storage, full AC control system.

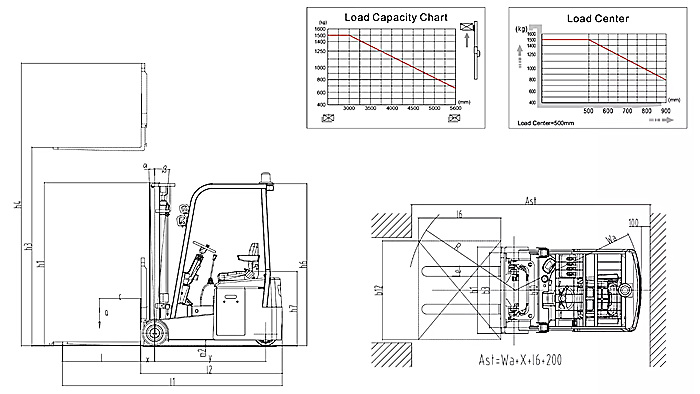

SIZE INFORMATION

Model		CPD15S-E
Model		CPD15S-E
Capacity/rated load	Q(kg)	1500
Load centre distance	c(mm)	500
Lift height	h3(mm)	2500~5600
Load distance,centre of drive axle to fork	x(mm)	170
Wheelbase	Y(mm)	1348
Service weight(with battery)	kg	2500
Axle loading,laden front/rear	kg	3280/710
Axle loading,unladen front/rear	kg	975/1525
Height,mast lowered	h1(mm)	1980(3M)
Free lift	h2(mm)	option
Height,mast extended	h4(mm)	3500~6600
Overall width	b1(mm)	1055
Fork dimensions	s/e/l(mm)	35x100x950(1070)
Aisle width for pallets 1000*1200 crossways	Ast(mm)	3050
Aisle width for pallets 800*1200 lengthways	Ast(mm)	3150
Turning radius	Wa(mm)	1550
Travel speed,laden/unladen	Km/h	6.8/7
Lift speed,laden/unladen	mm/s	100/150
Battery voltage,nominal capacity K5	V/Ah	24/320(400)

FAQ

Q1: Can Herrman provide customized products? OEM products or ODM products?

A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.

Q2: What's the specification of the chargers?

A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.

Q3: How about the delivery time?

A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.

Q4: Can we print the LOGO on products?

A4: Yes, the OEM is available with the permission of our customers.

Q5: What is your payment term?

A5: T/T,L/C or O/A if you want any other way, please contact us.

Q6: What can I get from cooperating with Herrman?

A6: 1. Unique products, with customized service.

2. Timely production and delivery, time is money.

3. Market protection service, long term business strategy.
