8000mm Reach Sit Down Electric Powered Forklift Truck With EPS

Ask Lasest Price
Brand Name :	HERRMAN
Model Number :	CQD15
Certification :	ISO,CE,CQC,IQNET,CNAS
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, O/AWestern Union, MoneyGram
Supply Ability :	200 Unit/Units per Month
Delivery Time :	21-30 work days

Add to Cart

Product Details
Company Profile

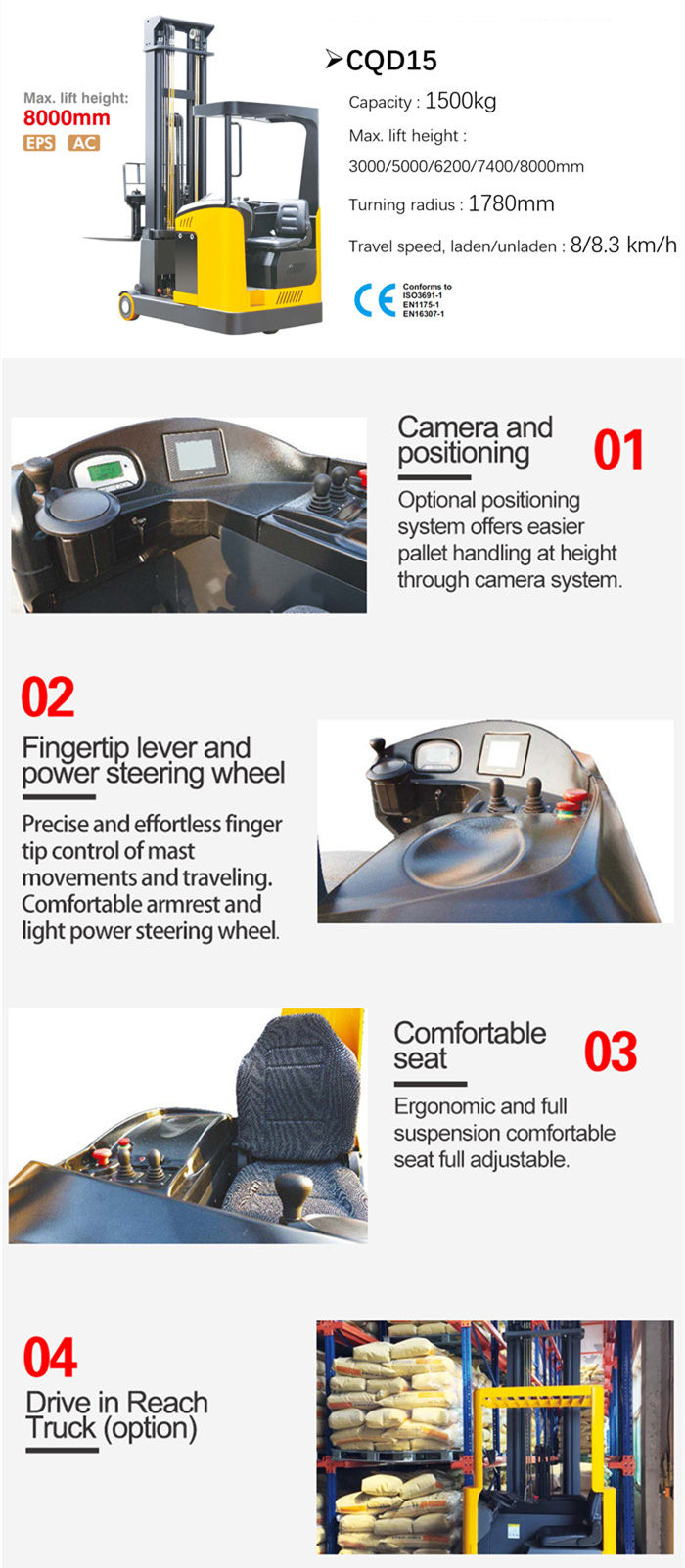

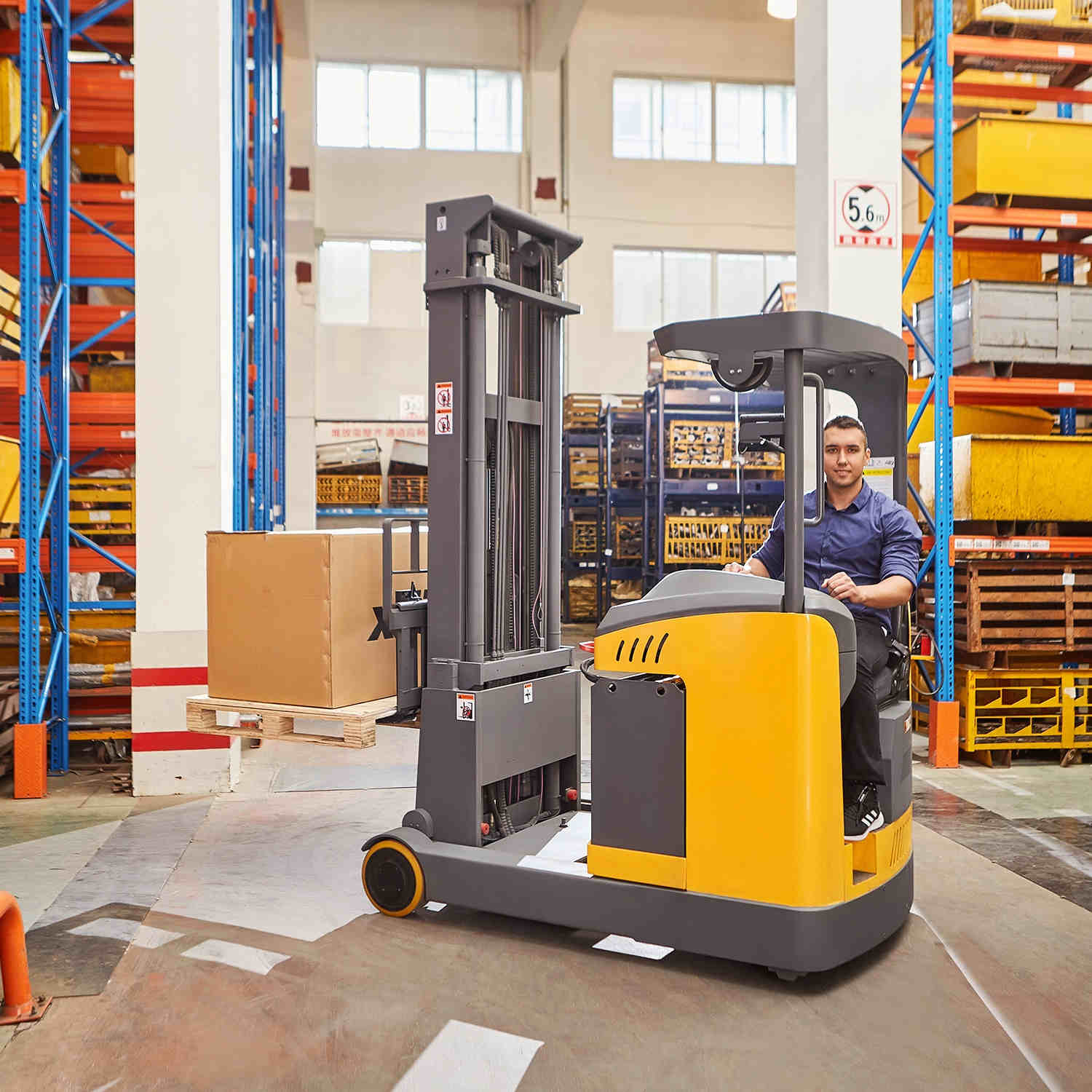

8000mm Reach Sit Down Electric Powered Forklift Truck With EPS

PRODUCT DESCRIPTION

heavy duty forklift stacker 1500kg 1.5 ton full electric reach truck with EPS for sale

Standard

* AC control system.
* Powering steering system (EPS).
* Multi-function display can show: Brake status, Driving direction, Hour meter, Driving
speed, Fault code, etc.
* Manual multi-valve.
* Adjustable speed for forks lifting/lowering mast forward/backward and side shift
right/left.
* German ZF brand gear box.
* Adjustable steering wheel.
* With traveling speed limited device when forks at high level.
* Electronic height limited device.

Option

* Electronic multi valve.
* Finger-tip control stick.
* Side shift.
* Height selection and height position system.
* LCD display and camera
* Travel/back-up flashing lights.
* Side-way battery.

SIZE INFORMATION

Model		CQD15
Model		CQD15
Capacity / rated load	(kg)	1500
Max. lift height	h3(mm)	3000/5000/6200/7400/8000
Load centre distance	c(mm)	600
Height, mast lowered	h1(mm)	2086/2240/2740/3190/3390
Free lift	h2(mm)	0/1700/2100/2500/2700
Height, mast extended	h4(mm)	3800/5800/7000/8200/8800
Height of overhead guard (cabin)	h6(mm)	2140
Seat height / stand height	h7(mm)	970
Height of crura	h8(mm)	315
Overall length	l1(mm)	2370
Length to face of forks	l2(mm)	1880
Overall width	b1(mm)	1200
Fork dimensions	s/e/l(mm)	35/100/1070
Reach distance	l4(mm)	600
Aisle width for pallets 1000x1200 crossways	Ast(mm)	2800
Aisle width for pallets 800x1200 lengthways	Ast(mm)	2890
Turning radius	Wa(mm)	1780
Travel speed, laden / unladen	Km/h	8/8.3
Lift speed, laden / unladen	m/s	0.45/0.36
Service weight (with battery)	(kg)	2900/3000/3100/3200/3300

FAQ

Q1: Can Herrman provide customized products? OEM products or ODM products?

A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.

Q2: What's the specification of the chargers?

A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.

Q3: How about the delivery time?

A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.

Q4: Can we print the LOGO on products?

A4: Yes, the OEM is available with the permission of our customers.

Q5: What is your payment term?

A5: T/T,L/C or O/A if you want any other way, please contact us.

Q6: What can I get from cooperating with Herrman?

A6: 1. Unique products, with customized service.

2. Timely production and delivery, time is money.

3. Market protection service, long term business strategy.
