Advantages:

● With hydraulic leveler control lifting and lowering, speed is adjustable.
● Explosion-proof valve applied in the cylinder prevents injuries in case of hydraulic pump failure.
● Brand-new configuration: adopted 1.5kw hydraulic pump (manual descending with controllable speed)
● With large storage battery.
● adopted plate chains with high strength. Ensure safety and stability.

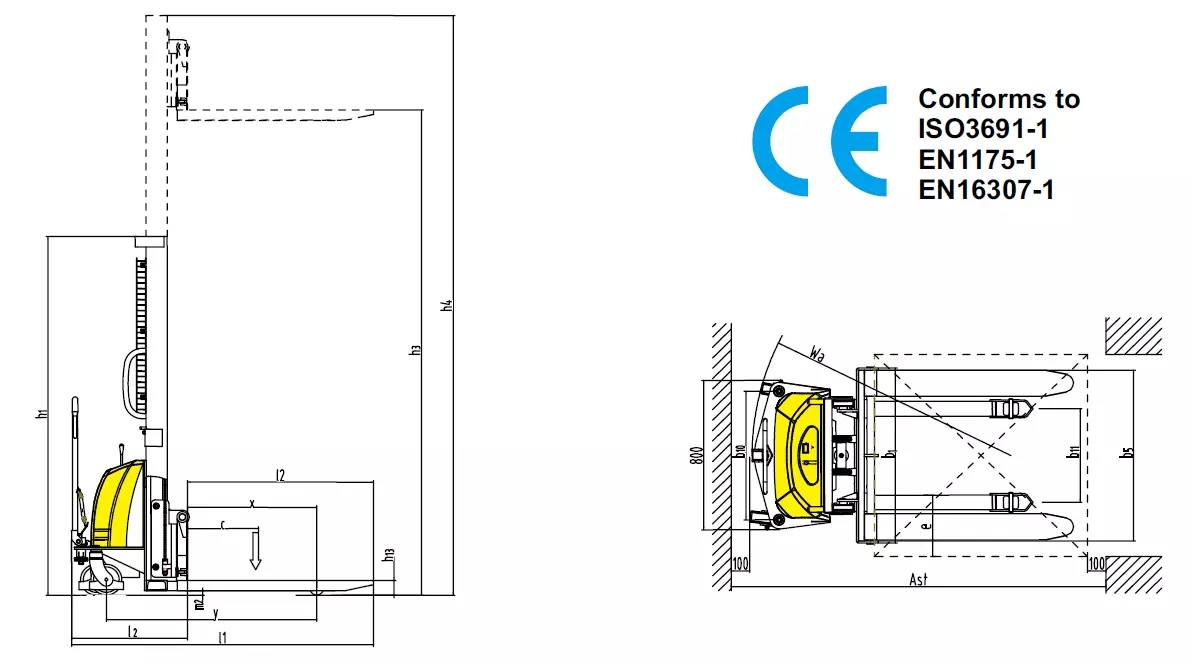

Semi Electric Pallet Stacker size information

Model		CDD15B-E
Capacity	(kg)	1500
Load centre distance	c(mm)	400
Load distance, centre of drive axle to fork	x(mm)	650
Height, mast lowered	h1(mm)	2100/1850/2100/2250/2350
Max. lift height	h3(mm)	1600/2500/3000/3300/3500
Height, mast extended	h4(mm)	2100/3060/3560/3860/4060
Height, lowered	h13(mm)	90
Overall length	l1(mm)	1745
Length to face of forks	l2(mm)	1070
Overall width	b1(mm)	960
Fork dimensions	s/e/l(mm)	60x142x1070
Width overall forks	b5(mm)	300-930
Aisle width for pallets 1000x1200 crossways	Ast(mm)	2288
Aisle width for pallets 800x1200 lengthways	Ast(mm)	2267
Turning radius	Wa(mm)	1425
Lifting speed, laden/unladen	m/s	0.05/0.08
Service brake		Mechanical brake
Battery Voltage, normal capacity K5	V/Ah	12/120
Truck weight	kg	335/395/415/425/435
