12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck

Ask Lasest Price
Brand Name :	HERRMAN
Model Number :	CQD16
Certification :	ISO,CQC,IQNET,CNAS
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, O/AWestern Union, MoneyGram
Supply Ability :	200 Unit/Units per Month
Delivery Time :	21-30 work days

Add to Cart

Product Details
Company Profile

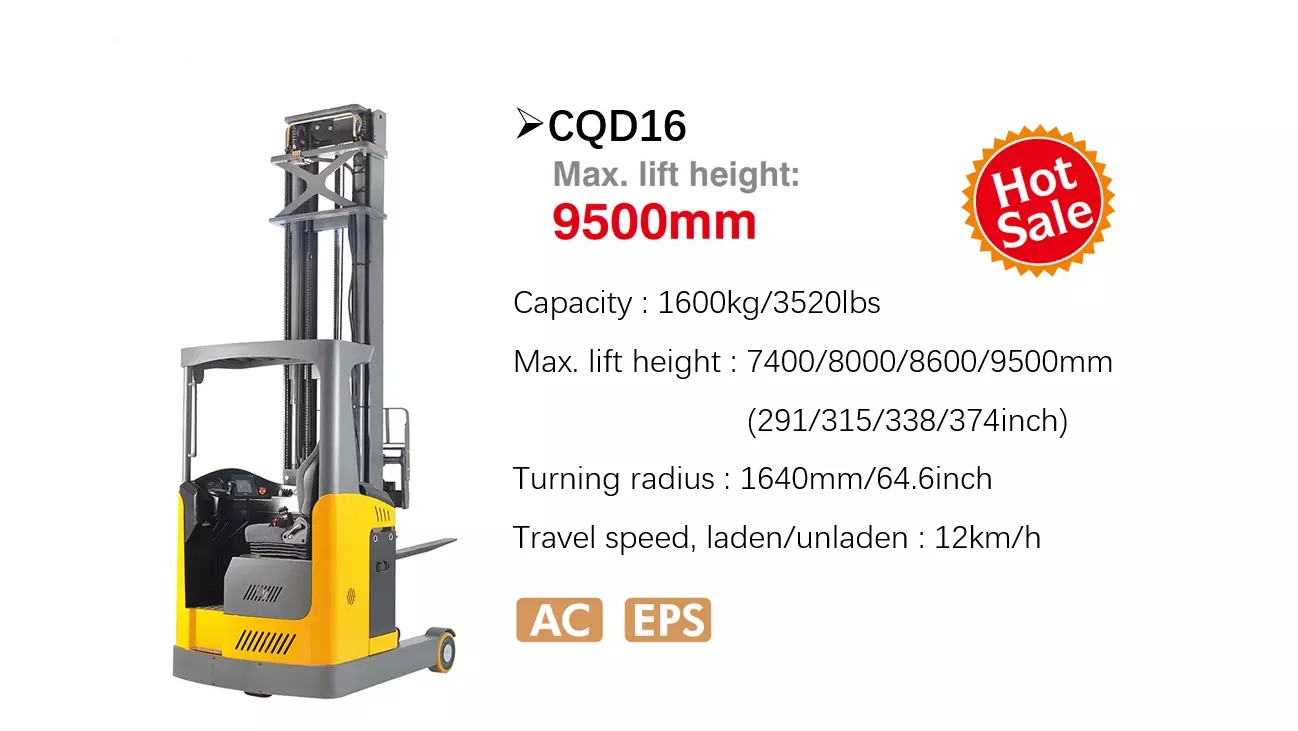

12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck

PRODUCT DESCRIPTION

Herrman Forklifts 1600kgs 1.6ton Max Lift Height 9.5m with AC motor Electric Reach Truck Drive Wheel

Advantages:

● With powerful AC drive motor, increase the production efficiency.
● Offers three different driving speed options ( Low/medium/high).
● Standard With ELECTRIC POWER STEERING system (EPS ) , steering is very light.
● Hydraulic system with proportional lifting, precisely control different speed .
● Steering wheel can be turn at 360degrees and or 180 degrees, two type steering functions can be freely switched as demand.
● Two lifting cylinder on two sides of mast and provide vide view in the front.
● Have multifunction instrument: show steering wheel direction. BDI battery status,
faulty code, different driven speed.
Option:
● Keypad ignition with PIN CODE, easy to access the management
system of truck.
● High solution camera, easy to operate for high fork position.
● Height position offers easier pallet handling at high height
position.
● Side way moving battery.
● Provide different option of overhead guard width, have smaller
overhead guard can operate in driven- in racking warehouse.
SIZE INFORMATION
ModelCQD16
Capacity / rated load(kg/lbs)1600/3528
Max. lift heighth3(mm/inch)7400/8000/8600/9500(291/315/339/374)
Load centre distancec(mm/inch)600/23.6
Height, mast loweredh1(mm/inch)3890/153.1
Free lifth2(mm/inch)3200/125.9
Height, mast extendedh4(mm/inch)10500/413.4
Height of overhead guard (cabin)h6(mm/inch)2200/86.6
Seat height / stand heighth7(mm/inch)1050/41.3
Height of crurah8(mm/inch)310/12.2
Overall lengthl1(mm/inch)2400/94.5
Length to face of forksl2(mm/inch)1320/52
Overall widthb1/b2(mm/inch)1260/50
Fork dimensionss/e/l(mm/inch)35*100*1070(1.4*3.9*42.1)
Reach distancel4(mm/inch)560/22.1
Aisle width for pallets 1000x1200 crosswaysAst(mm/inch)2750/108.3
Aisle width for pallets 800x1200 lengthwaysAst(mm/inch)2810/110.6
Turning radiusWa(mm/inch)1640/64.6
Travel speed, laden / unladenKm/h12
Lift speed, laden / unladenm/s0.35/0.4
Service weight (with battery)(kg/lbs)3600/7938
PACKING&SHOPING

PRODUCTION SCENE
FAQQ1: Can Herrman provide customized products? OEM products or ODM
products?
A1: Yes, Herrman can provide customized products according to your
requirement. Both OEM and ODM are acceptable. We do a lot
ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers
to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products,
we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
