5.6m Height 3.5t Explosion Proof Sit Down Electric Powered Forklift

Ask Lasest Price
Brand Name :	HERRMAN
Model Number :	CPD15/20/30/35Ex
Certification :	ISO CE
Price :	By negotiation
Payment Terms :	L/C, D/A, D/P, T/T,O/A
Supply Ability :	Ten thousand sets per year
Delivery Time :	20days

Add to Cart

Product Details
Company Profile

5.6m Height 3.5t Explosion Proof Sit Down Electric Powered Forklift

Advantages:

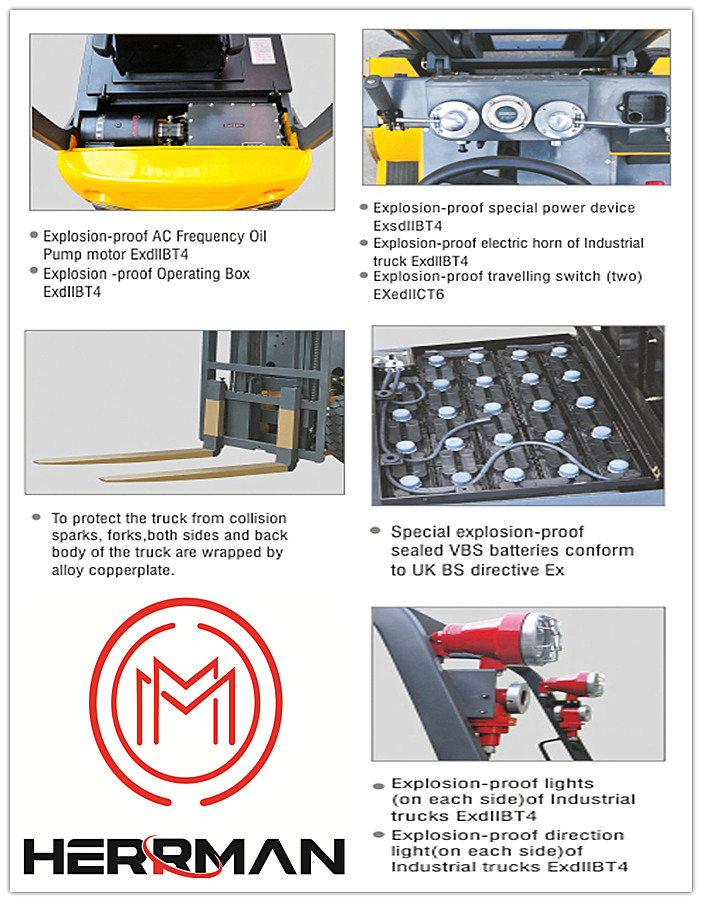

Our Ex AC type electric forklift is approved with Explosion-proof mark: Ex d mb s ⅡB T4 Gb/Ex tD A21 IP65 T130℃ explosion-proof equipment for Category 2G, applicable to Zone I and Zone II which may have explosive gas environment. Offer high safety functions according to international standards.

Side-put lifting cylinders and chains offer Wide-view visibility .
AC Variable-frequency speed control technology, greatly improved the reliability and safety.
Advanced H-drive axle, low center of gravity design, with stable turning.
With regenerative braking system, ramp soft starting, reverse braking system and other protection settings. Improve the safety under the hazardous environments.
Charger connection and emergency switch have an inter-lock system, safe for charging.
Special explosion-proof sealed VBS batteries conform to UK BS directive.
With anti-friction flameproof brake plate.
With alloy copper plated truck back body and forks.

SIZE INFORMATION

Model		CPD15Ex	CPD20Ex	CPD30Ex	CPD35Ex
Explosion-proof		Exd mbsⅡBT4 Gb/Ex tD A21 IP65 T130℃
Operation type		seated	seated	seated	seated
Capacity/rated load	Q(kg)	1500	2000	3000	3500
Load centre distance	c(mm)	500	500	500	500
Lift height	h3(mm)	3000~5600	3000~5600	3000~5600	3000~5600
Load distance, centre of drive axle to fork	x(mm)	428	428	498	498
Wheelbase	y(mm)	1460	1460	1850	1850
Service weight(with battery)	kg	3520	3680	5120	5300
Axle loading, laden front/rear	kg	4210/810	4820/860	7260/860	8010/790
Axle loading, unladen front/rear	kg	1660/1860	1760/1920	2510/2610	2620/2680
Tyre size, front		6.50-10-10PR Ex	6.50-10-10PR Ex	28×9-15 Ex	28×9-15 Ex
Tyre size, rear	pcs	5.00-8-8PR Ex	5.00-8-8PR Ex	6.50-10-8PR Ex	6.50-10-8PR Ex
Wheels, number front rear(x=driven wheels)	b10(mm)	2x/2	2x/2	2x/2	2x/2
Tread, front	b11(mm)	970	970	1000	1000
Tread, rear		920	920	970	970
Tilt of mast/fork carriage forward/backward	.	3/6	3/6	4/6	4/6
Height, mast lowered	h1(mm)	2090~2450	2090~2450	2040~2660	2040~2660
Height, mast extended	h4(mm)	4067~6667	4067~6667	4280~7280	4280~7280
Height of overhead guard(cabin)	h6(mm)	1992	1992	2140	2140
Seat height	h7(mm)	980	980	1100	1100
Coupling height	h10(mm)	480	480	590	590
Overall length	l1(mm)	3300	3300	3755	3755
Length to face of forks	l2(mm)	2160	2160	2640	2640
Overall width	b1(mm)	1140	1140	1220	1220
Fork dimensions	s/e/l(mm)	45/120/1070	50/120/1070	55/130/1070	55/130/1070
Fork carriage type A,B		A	A	A	A
Fork carriage width	b3(mm)	980	980	1200	1200
Ground clearance, laden, below mast	m1(mm)	100	100	110	110
Ground clearance, centre of wheelbase	m2(mm)	130	130	140	140
Aisle width for pallets 1000×1200 crossways	Ast(mm)	3600	3600	4080	4080
Aisle width for pallets 800×1200 lengthways	Ast(mm)	3400	3400	3880	3880
Turning radius	Wa(mm)	1980	1980	2430	2430
Travel speed, laden/unladen	km/h	11.5/12	11/11.5	11.5/12	11/12
Lift speed, laden/unladen	mm/s	280/300	260/300	220/240	200/240
Lowering speed, laden/unladen	mm/s	<600	<600	<600	<600
Max. gradeability, laden/unladen	%	10/15	10/15	10/15	10/15
Service brake		mechanical/hydraulic
Battery voltage, nominal capacity K6	V/Ah	48/480	48/540	80/480	80/540
Battery weight	kg	820~860	920~960	1320~1380	1480~1540
Type of drive control		AC	AC	AC	AC
Sound level at the driver’s ear acc.to DIN 12053	dB(A)	68	68	68	68

PRODUCT DESCRIPTION

Heavy duty forklift stacker 1500kg 1.5 ton full electric reach truck with EPS for sale 5

Heavy duty forklift stacker 1500kg 1.5 ton full electric reach truck with EPS for sale 6

Heavy duty forklift stacker 1500kg 1.5 ton full electric reach truck with EPS for sale 7

FAQ

Q1: Can Herrman provide customized products? OEM products or ODM products?

A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.

Q2: What's the specification of the chargers?

A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.

Q3: How about the delivery time?

A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.

Q4: Can we print the LOGO on products?

A4: Yes, the OEM is available with the permission of our customers.

Q5: What is your payment term?

A5: T/T,L/C or O/A if you want any other way, please contact us.

Q6: What can I get from cooperating with Herrman?

A6: 1. Unique products, with customized service.

2. Timely production and delivery, time is money.

3. Market protection service, long term business strategy.
