AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck

Ask Lasest Price
Brand Name :	HERRMAN
Model Number :	CQDH15C double scissor forklift
Certification :	ISO,CE
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, O/AWestern Union, MoneyGram
Delivery Time :	15-30 work days

Add to Cart

Product Details
Company Profile

AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck

PRODUCT DESCRIPTION

Herrman 1000kgs 1ton double scissor forklift max.lift height 6m Electric Fork Reach Truck

Advantages:

SAFETY AND STABILITY
● Advanced AC control system eliminating the motor brushes and directional contactor, which
makes the minimal maintenance requirements.
● Equipped with adjustable hand-rest, adapted to different operator.
● Built-in pressure relief valve protects the trucks from
overloads.
● Emergency power disconnect.

STRUCTURAL
● Low Center of Gravity ensures the stable operation.
● Vertical driving wheel has a small turning radius and easy to maintain. The motor structure is water-proof and dust-proof.
● The Scissor Reach Forks is operated by electric controller, which makes operation stable and no impact.

SERVICEABILITY
● Low battery protection setting prolongs the battery use time.
● All pivot points have grease fitting and serviceable bushing, reducing component wear and extending component life.Option:
* Straddle legs
* Double front wheels
* Side shift
* Full free lift masts

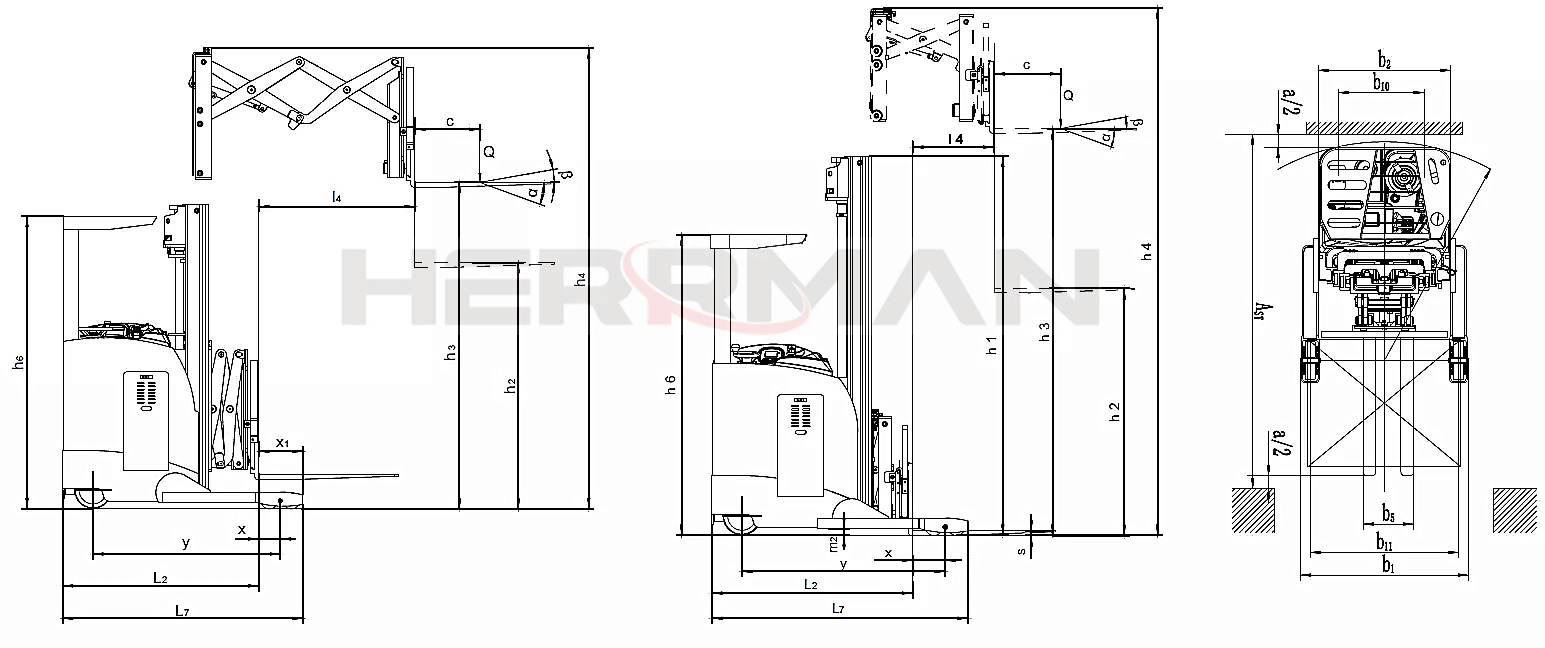

SIZE INFORMATION
ModelCQDH15C(double scissor)
Capacity / rated load(kg)1000
Load centre distancec(mm)500
Load distance,centre of drive axle to forkx(mm)159135
Height, mast loweredh1(mm)2125/2375/26252185/2345/2505/2675
Free lifth2(mm)~/~/~1575/1700/1825/2000
Max. lift heighth3(mm)3000/3500/40004500/5000/5500/6000
Height, mast extendedh4(mm)4035/4535/50355535/6035/6535/7035
Height of overhead guard (cabin)h6(mm)2246
Overall lengthl1(mm)25852609
Overall widthb1/b2(mm)1308/10401308/1040 1370/1040
Fork dimensionss/e/l(mm)35/100/1070
Aisle width for pallets 1000x1200 crosswaysAst(mm)29512971
Aisle width for pallets 800x1200 lengthwaysAst(mm)30343056
Turning radiusWa(mm)17181718
Travel speed, laden / unladenKm/h6.5/7
Lift speed, laden / unladenm/s0.135/0.16
Service weight (with battery)(kg)2480/2530/25902730/2830/2930/3030

PACKING&SHOPING

PRODUCTION SCENE
FAQQ1: Can Herrman provide customized products? OEM products or ODM
products?
A1: Yes, Herrman can provide customized products according to your
requirement. Both OEM and ODM are acceptable. We do a lot
ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers
to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products,
we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
