PRODUCT DESCRIPTION
Herrman 1.6ton 2ton 3m 3.5m 4m 4.5m 5m 6.2m electric manual
forklift 4 Directional Forklift
Advantages:
● CSD 4-directional forklift has multiple functions. It can move
forwards, backwards and sideways in both directions.
● Compared with ordinary forklift truck, CSD’s most distinguishing
and incomparable feature lies in its excellent flexibility,
convenience and maneuverability, it is quite flexible when carrying
long loads moving sideways.
● Motor & control system features a low noise, no pollution emission
and is green and environment-friendly.
● Most advanced AC variable-frequency control system. AC motor
provides the truck a more stable performance and quality, allows
high efficiency , low energy consumption and motor maintain free.
● Adopt dual motor drive and double steering system, which allows
the truck to drive forwards, backwards, sideways. The operator can
freely select appropriate functions according to different working
environment and situation.
● Shift between frontal and sideways travel, this function is
controlled by prepared program of the electric control system. It
has the power-on automatic detection function, if the truck is shut
off or incident power failure occurs, the control system will do
detection automatically while energizing again, and allow the truck
to restore to its original state in a very short time.
● Multi-function instrument displaying the battery power, work hour,
fault self-diagnosing and alarm. Operator can know the truck
conditions quickly, make trouble shooting and maintenance faster
and easier.

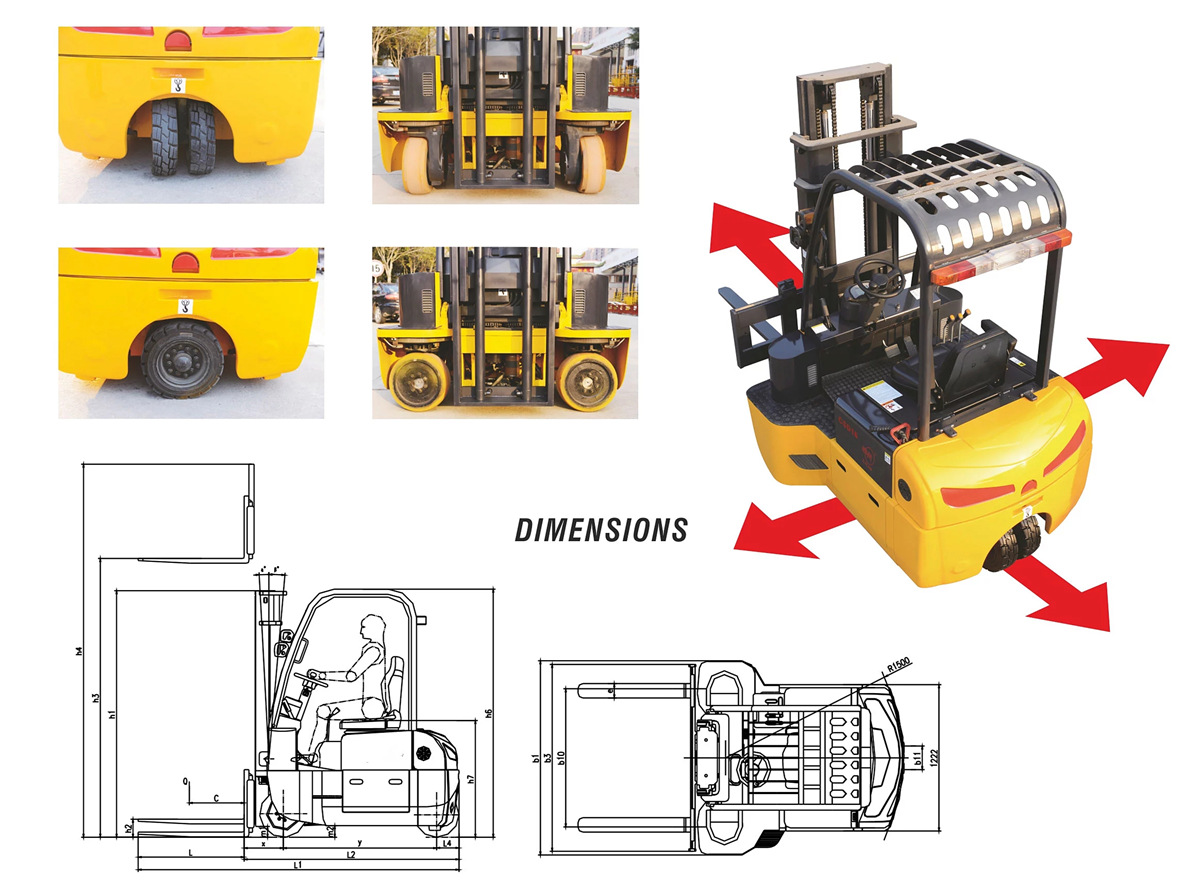

SIZE INFORMATION

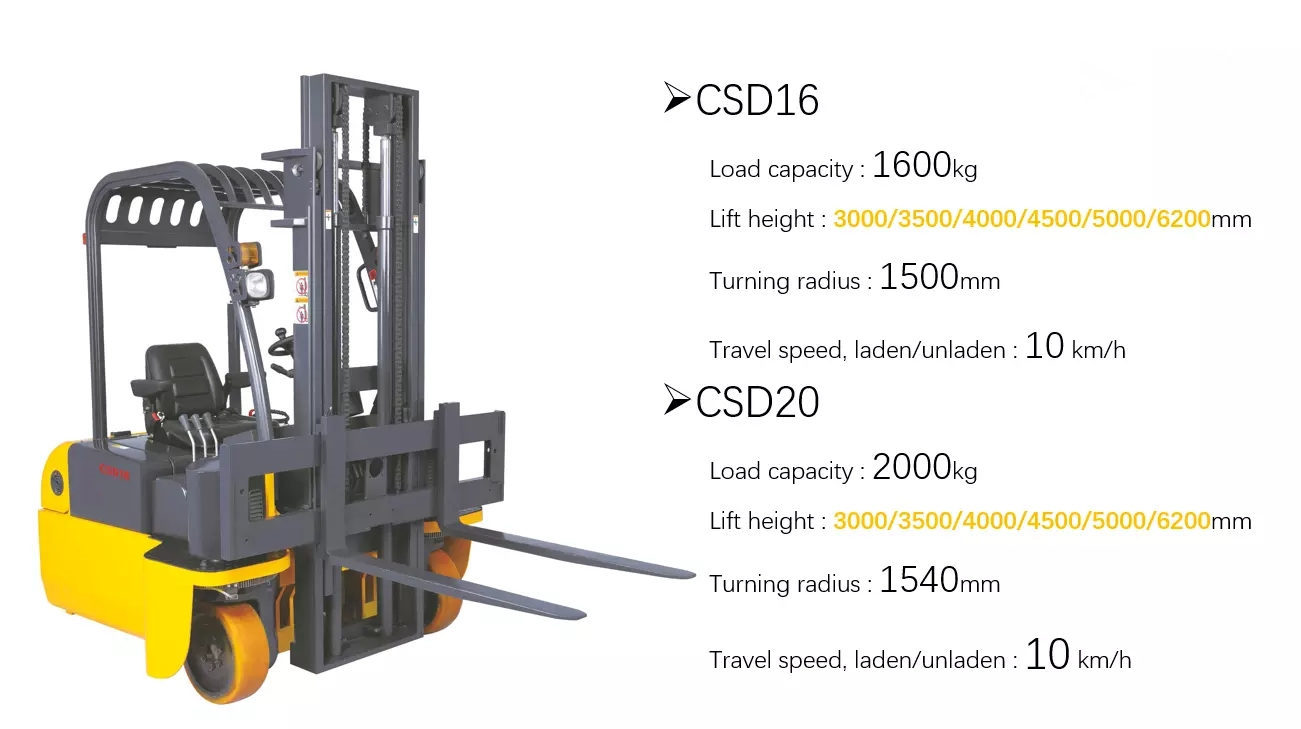

| MODEL | | CSD16 | CSD20 |
| Drive | | electric | electric |
| Operator type | | seated | seated |
| Load capacity/rated load | Q(kg) | 1600 | 2000 |
| Load centre distance | c(mm) | 500 | 500 |
| Wheelbase | y(mm) | 1300 | 1300 |
| Tyre size, front | mm | φ406×152 | φ406×152 |
| Tyre size, rear | mm | 15×4½-8 | 15×4½-8 |
| Tread, front | b10(mm) | 1133 | 1133 |
| Tilt of mast/fork carrige forward/backward(α/β) | | 3/5 | 3/5 |
| Lift height | h3(mm) | 3000/3500/4000 | 4500/5000/6200 |
| Free lift | h2(mm) | ~ | ~ |
| Height, mast lowered | h1(mm) | 2090 | 2090 |
| Height, mast extended | h4(mm) | 3800/4300/4800 | 5300/5800/7000 |
| Overall length | l1(mm) | 2890 | 2940 |
| Overall width | b(mm) | 1622 | 1622 |
| Fork dimensions | e/l(mm) | 35/100/1070 | 40/120/1070 |
| Distance between fork-arms | b11(mm) | 240-1360 | 240-1360 |
| Fork-carriage width | b3(mm) | 1560 | 1560 |
| Turning radius | Wa(mm) | 1500 | 1540 |
| Travel speed, laden/unladen | Km/h | 10 | 10 |
| Lift speed, laden/unladen | mm/s | 240 | 200 |
| Gradeability, laden/unladen | % | 10 | 10 |
| Battery voltage, nominal capacity K5 | V/Ah | 48/490 | 48/490 |
| Battery weight | kg | 900 | 900 |
| Sound level at the driver’s ear acc.to DIN 12053 | dB(A) | <63 | <63 |
| Shaking | m/s2 | 1.37 | 1.37 |
| Service weight (with battery) | kg | 3650 | 4300 |
FAQ
Q1: Can Herrman provide customized products? OEM products or ODM
products?
A1: Yes, Herrman can provide customized products according to your
requirement. Both OEM and ODM are acceptable. We do a lot
ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers
to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products,
we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
