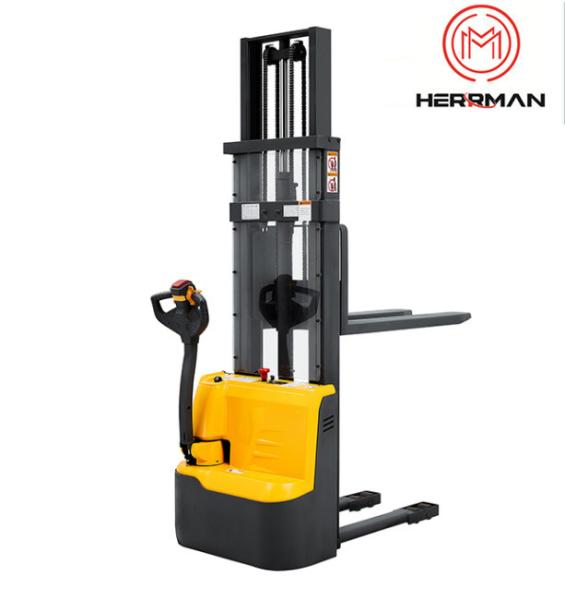

DC motor 695mm fork 1T Pedestrian Fully Electric Reach Pallet Stacker

Product Categories

Anhui Herrman Machinery Co.,ltd

Contact Now

Name: DC motor 695mm fork 1T Pedestrian Fully Electric Reach Pallet Stacker
Brand: HERRMAN
Price: 1 USD

Add to Cart

Model		CDD10R-E	CDD12R-E	CDD15R-E
Capacity	(kg)	1000	1200	1500
Load centre distance	c(mm)	600	600	600
Load distance, centre of drive axle to fork	x(mm)	741	741	741
Fork height, lowered	h13(mm)	90	90	90
Height, mast lowered	h1(mm)	2090/1840/2090/2200/2340	2090/1840/2090/2200/2340	2085/1835/2085
Height, mast extended	h4(mm)	2090/3060/3560/3860/4060	2090/3060/3560/3860/4060	2090/3060/3560
Max. lift height	h3(mm)	1600/2500/3000/3300/3500	1600/2500/3000/3300/3500	1600/2500/3000
Overall length	l1(mm)	1748(1668)	1748(1668)	1748(1668)
Length to face of forks	l2(mm)	598	598	598
Overall width	b1(mm)	800	800	800
Fork dimensions	s/e/l(mm)	60/170/1150(1070)	60/170/1150(1070)	60/170/1150(1070)
Width overall forks	b5(mm)	570/695	570/695	570/695
Aisle width for pallets 1000x1200 crossways	Ast(mm)	2218	2218	2212
Aisle width for pallets 800x1200lengthways	Ast(mm)	2173	2173	2171
Turning radius	Wa(mm)	1365	1365	1355
Travel speed, laden/unladen	(Km/h)	4.5/5	4.5/5	4.5/5
Lifting speed, laden/unladen	(m/s)	0.11/0.14	0.09/0.14	0.08/0.11
Battery Voltage, normal capacity K5	V/Ah	24/105(125)	24/105(125)	24/125
Truck weight(with battery)	(kg)	460/525/545/560/565	615/640/660/675/680	705/730/750/765/770

Product Tags:

1T fully electric stacker
