1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel

    Buy cheap 1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel from wholesalers

    Buy cheap 1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel from wholesalers
    • Buy cheap 1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel from wholesalers
    • Buy cheap 1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel from wholesalers
    • Buy cheap 1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel from wholesalers
    • Buy cheap 1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel from wholesalers

    1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel

    Ask Lasest Price
    Brand Name : HERRMAN
    Model Number : FB20R FB25R
    Certification : ISO,CE,CQC,IQNET,CNAS
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, O/AWestern Union, MoneyGram
    Supply Ability : 200 Unit/Units per Month
    Delivery Time : 21-30 work days
    • Product Details
    • Company Profile

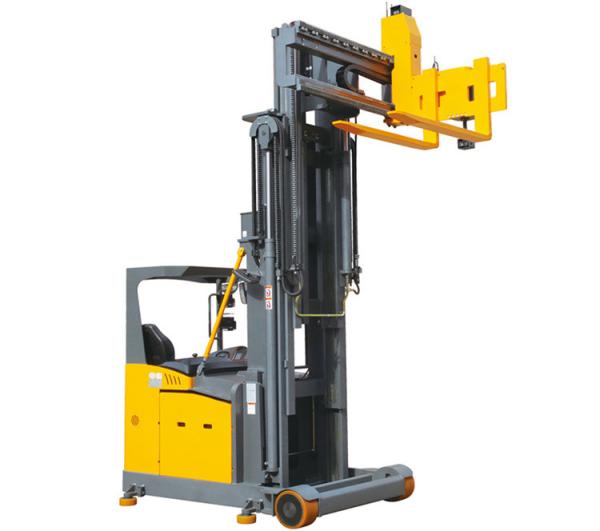

    1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel

    Advantages:

    1. Full AC control system.
    2. Finger-tips operation handle.
    3. Electric power steering (EPS) system.
    4. With electric magnetic multi-valve.
    5. Multi-function display, brake status, driving direction, hour meter, driving speed, fault code etc.
    6. 48V -3 phase AC type with large capacity battery 1000Ah.
    7. With smallest Aisle width is 1600mm.
    8. Full suspension comfortable seat with belt is adjustable.
    9. Germany ZF brand gear box.
    10. Adjustable steering wheel.
    11. Sideway battery system.

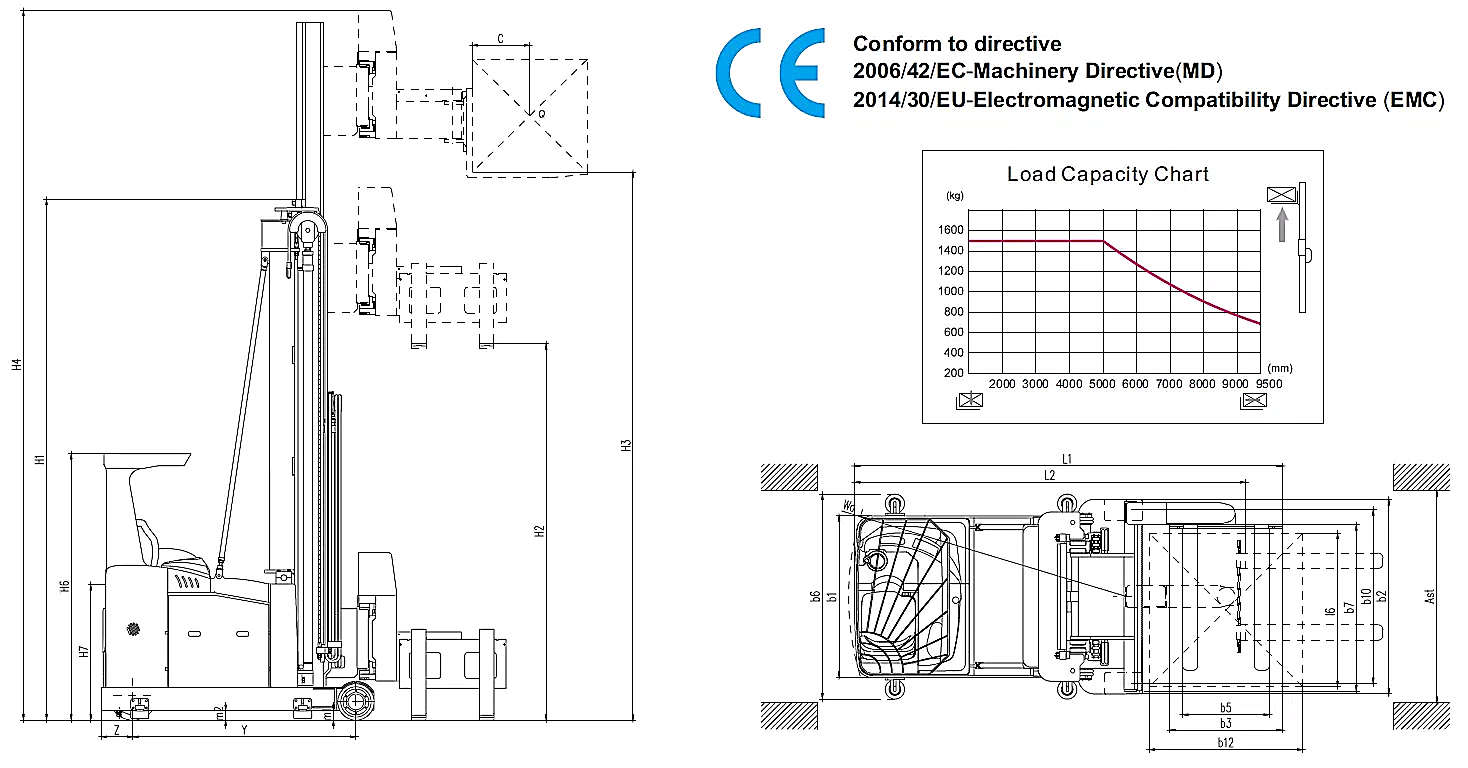

    SIZE INFORMATION


    Model
    OPD15
    Operation type
    SEATED

    Capacity / rated load
    kg
    1500
    Track width,front
    b10(mm)
    1356
    Lift height
    h3(mm)
    5000/6200/7400/8000/8600/9500
    Lowered mast height
    h1(mm)
    2800/3200/3600/3800/4000/4300
    Free lift
    h2(mm)
    1700/2100/2500/2700/2900/3200
    Extened mast height
    h4(mm)
    6300/7500/8700/9300/9900/10800
    Height of overhead guard (cabin)
    h6(mm)
    2200
    Seat height / stand height
    h7(mm)
    1120
    Overall length
    l1(mm)
    3340
    Length to face of forks
    l2(mm)
    3055
    Overall width
    b1/b2(mm)
    1260/1520
    Fork dimensions
    s/e/l(mm)
    45/125/1250
    Fork carriage width
    b3(mm)
    880
    Width over forks
    b5(mm)
    845
    Width across guide roller
    b6(mm)
    1600
    Reach,lateral
    b7(mm)
    1300
    Aisle width for pallets 1200*800
    Ast(mm)
    1700
    Turning radius
    Wa(mm)
    2170
    Pallet width
    b12(mm)
    1200
    Pallet length
    l6(mm)
    800/1200
    Travel speed,laden/unladen
    Km/h
    8/8.5
    Lift speed,laden/unladen
    mm/s
    220/320
    Lowering speed,laden/unladen
    mm/s
    400/350
    Reach speed,laden/unladen
    mm/s
    150/150
    Service brake
    regenerative/hydraulic
    Parking brake
    electric spring-loaded
    Type of drive control
    AC power control


    PRODUCT DESCRIPTION

    1500kg 3300lbs 1.5Ton Capacity 48V Forklift with AC motor Lateral Electric Reach Truck



    FAQ

    Q1: Can Herrman provide customized products? OEM products or ODM products?

    A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.

    Q2: What's the specification of the chargers?

    A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.

    Q3: How about the delivery time?

    A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.

    Q4: Can we print the LOGO on products?

    A4: Yes, the OEM is available with the permission of our customers.

    Q5: What is your payment term?

    A5: T/T,L/C or O/A if you want any other way, please contact us.

    Q6: What can I get from cooperating with Herrman?

    A6: 1. Unique products, with customized service.

    2. Timely production and delivery, time is money.

    3. Market protection service, long term business strategy.
